Control System Design:Getting Started with Arduino and MATLAB -Experimental Kit

Maker PartNumber:4560410440071

■Product Decription

This experimental kit is designed to actually experience the following experiment described in the book of "Control System Design: Getting Started with Arduino and MATLAB" (ISBN 978-4-906864-08-9) It is an original product of TechShare which is made up of necessary experimental parts kit.

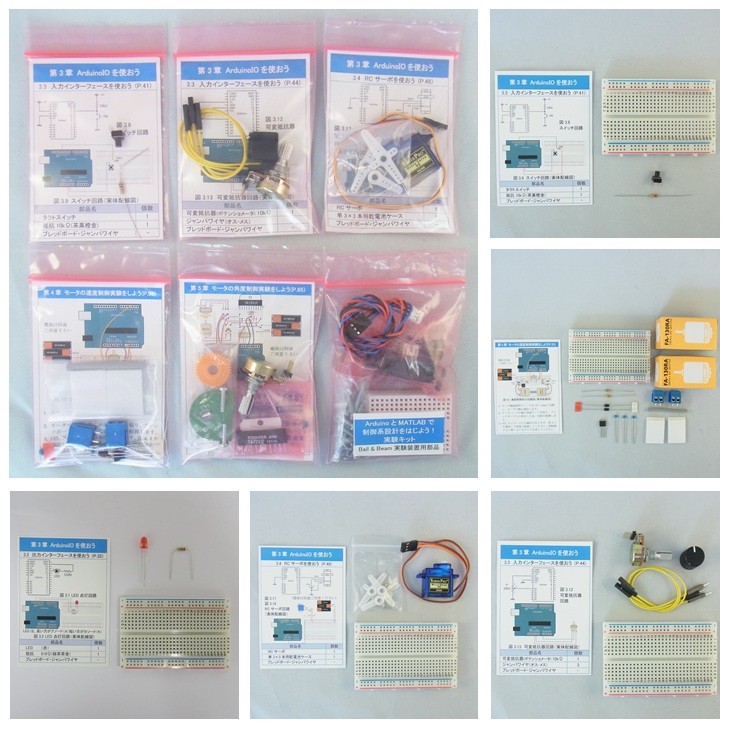

The parts are summarized for each experiment, and along with that manual (card) printed is attached  with an electronic circuit diagram, real wiring diagram.Really Consideration was made to make it easier to retrieve for practical training.
Chapter 3 Using ArduinoIO
 3.2 Using Output Interface
 3.3 Using Input Interface
 3.4 Using RC Servo
Chapter 4 Motor Speed Control

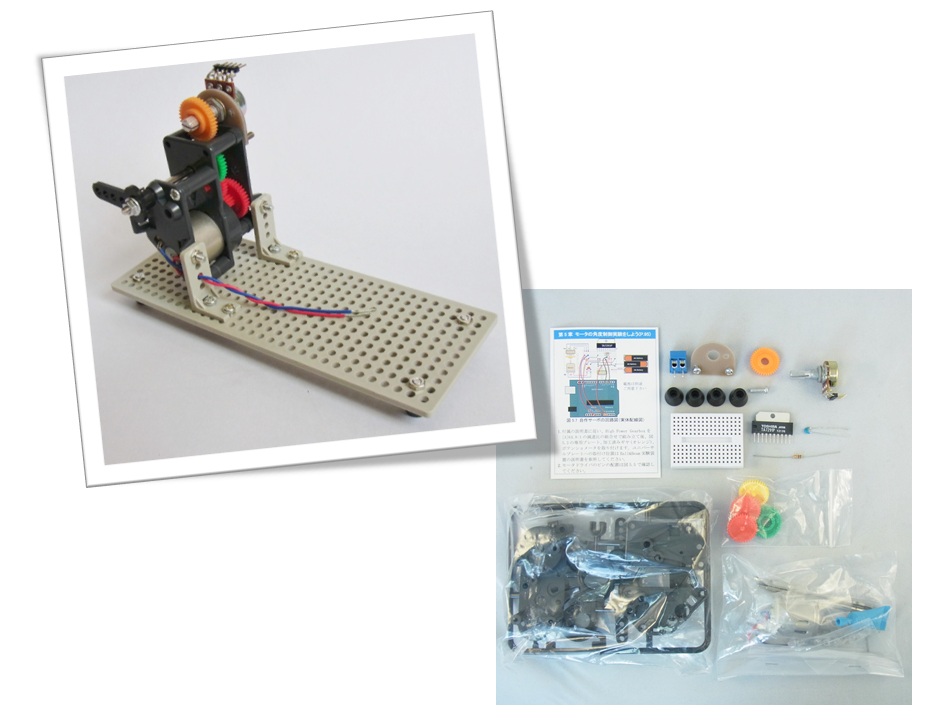

Chapter 5 Motor Position Control

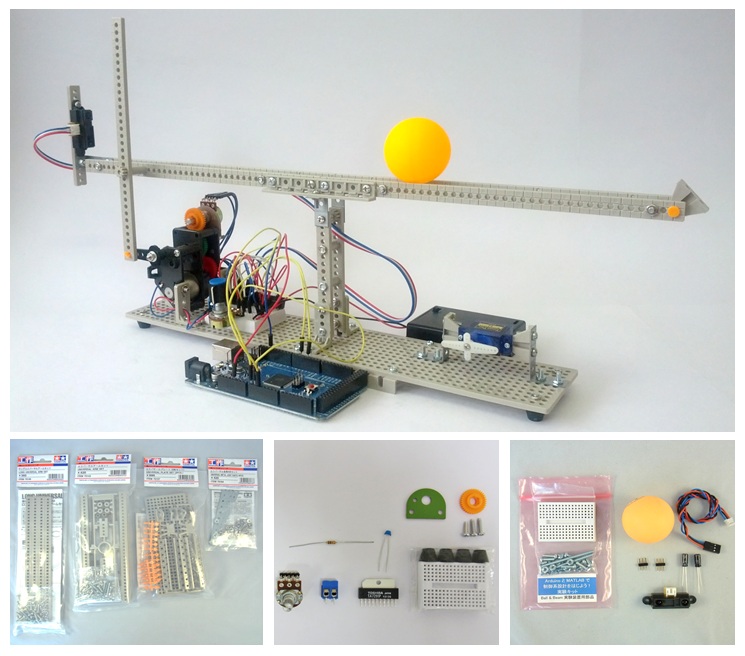

Chapter 6 Ball & Beam Experiments





Spare parts are put in electronic circuit parts (resistance, LED, ceramic capacitor). It is possible to redo even if cutting the lead wire by mistake. The method of assembling the Ball & Beam device is described in the A3 size manual.Others, including jumper wires, hard jumper wires, breadboards, USB cables, battery boxes, etc., commonly used for each experiment are included ( Excluding Arduino micro Computer board and batteries).

In the book ,"Control System Design Getting started with Arduino and MATLAB!",Simulation using MATLAB / Simulink,Actual machine experiment using ArduinoIO,Actual machine experiment using Run on Target,Motor speed control experiment,Angle control experiment,through the experiment of Ball & Beam,learn the basic content from control system design.


In order to actually try these simulations and actual machine experiments, the following environment is a premise.

1)MATLAB after R2012a、Simulink、Control System Toolbox.
  ※A student version is also possible.
2)Arduino Uno or Arduino Mega 2560 microcontroller board.
※In Arduino Uno, when using the function of Run on Target Hardware introduced in Chapter 8 Simulink's External Mode can not be used.If parameter tuning using External Mode or monitoring of experimental data is required, Mega is also  required.

3)This experiment kit (or equivalent experimental member).

■Note
※1.This product does not include Arduino's microcomputer board. It is necessary to purchase separately.

※2.This product does not include books of "Control system design with Arduino and MATLAB!" (ISBN 978-4-906864-00-3). A simple manual for assembling the experimental equipment is included but the explanation of the experiment itself is not attached.To explain each experiment, it is necessary to separately purchase a book titled "Start Control System Design with Arduino and MATLAB!"

※3.In Chapter 4 :"Motor Speed Control Experiment" of the book, there is a correction in the electronic circuit diagram ,Please be careful.For further details please refer to  TechShare Books Site.
