Starter Pack for Tinker Board [TSI-TB037E]
Starter Pack for Tinker Board
Tinker Board starter pack is more convenient pack where it contains Tinker OS preinstalled 16 GB Class 10 MicroSD card in addition with the Tinker Board power supply set.
Tinker Board is not an exception in single board computers that improve performance, and the power supply needs a large capacity. In a single board computer that requires a large capacity such as Tinker Board, the voltage drop due to the resistance of the cable and the switch also has a big influence, not to mention the lack of capacity of the AC adapter as the cause of the shortage of the power supply capacity.
Internal copper wire for smartphones is thin due to the diversion of power supply cable, voltage drop due to inappropriate switch with large contact resistance, many users suffer due to insufficient power supply capacity at full load operation.
You can use this starter pack immediately with the Tinker Board main board with the HDMI cable & your display.
■Characteristics of AC power supply set
□ Tinker Board can also use with a margin 5 V 3.0 A high capacity adapter
□ Tinker Board with small switch convenient for using
□ Secure verified power supply and cable set that does not cause problems
such as shutdown and freeze due to voltage drop even under full load of Tinker Board
1.A special small switch with low internal resistance is adopted.
2.We adopt a thick cable with low internal resistance
3.It is actually verified and tested by the use of Tinker Board.
4.It is fully verified with a combination of AC adapter, cable, switch and Tinker Board.
□With PSE mark that can be used in Japan

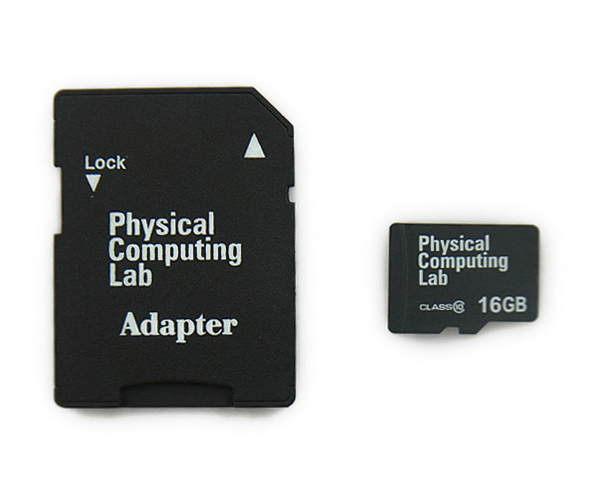

■TinkerOS preinstalled Micro SD card
□ Performance evaluation and MicroSD card of Physical Computing Lab managed by lot
□ TinkerOS Pre-installed
□ Shipped the Tinker Board that cleared the startup tests
※The partition of the Micro SD card is cut off for TinkerOS.
For this reason only the boot partition is checked from Windows PC.

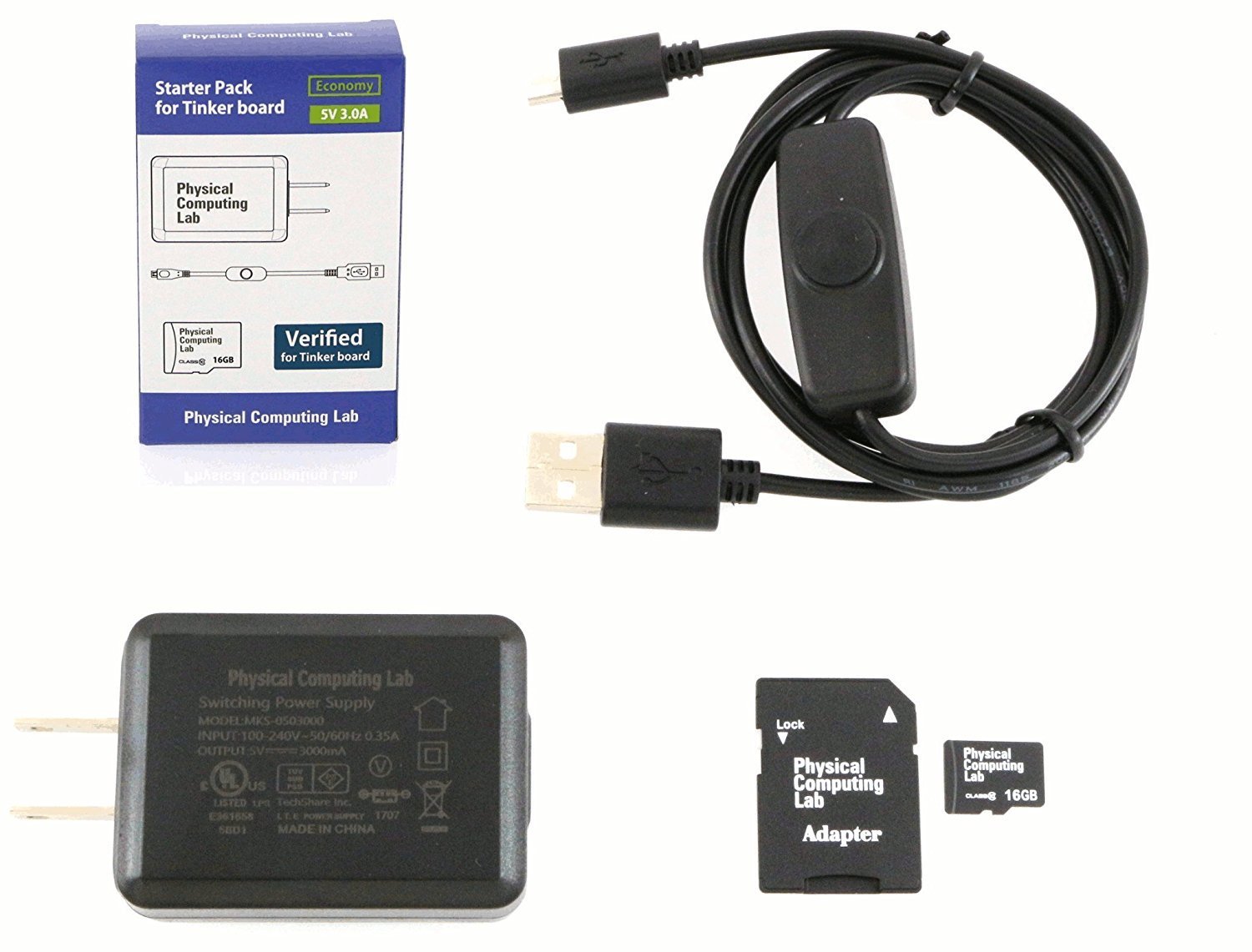

□ AC Power Supply 5 V 3.0 A
□ Power cable with switch (1.1 m)
□ Tinker OS preinstalled MicroSD card (Class 10 16 GB)
※Physical Computing Lab is a registered trademark of TechShare's original brand.
