【Product Summary】

It is the case for the LattePanda of the Mobile Circuit Block 3ple Decker (Triple / Decker) series which is best suited for prototyping IoT (Internet of Things) products and PBL education (Project Based Learning education).



Pins for stacking with the case of 3ple Decker series and pins for fastening to the universal plate of Tamiya are included so you can stack on the 3ple Decker series display case as shown below You can prepare. Since it is a structure that can be easily detached, it can be used according to the occasional application.



Also, in this case, there is an opening in the upper part, it is designed with consideration of access to the GPIO pin and sensor connector, so you can connect smoothly when using the IO connector.

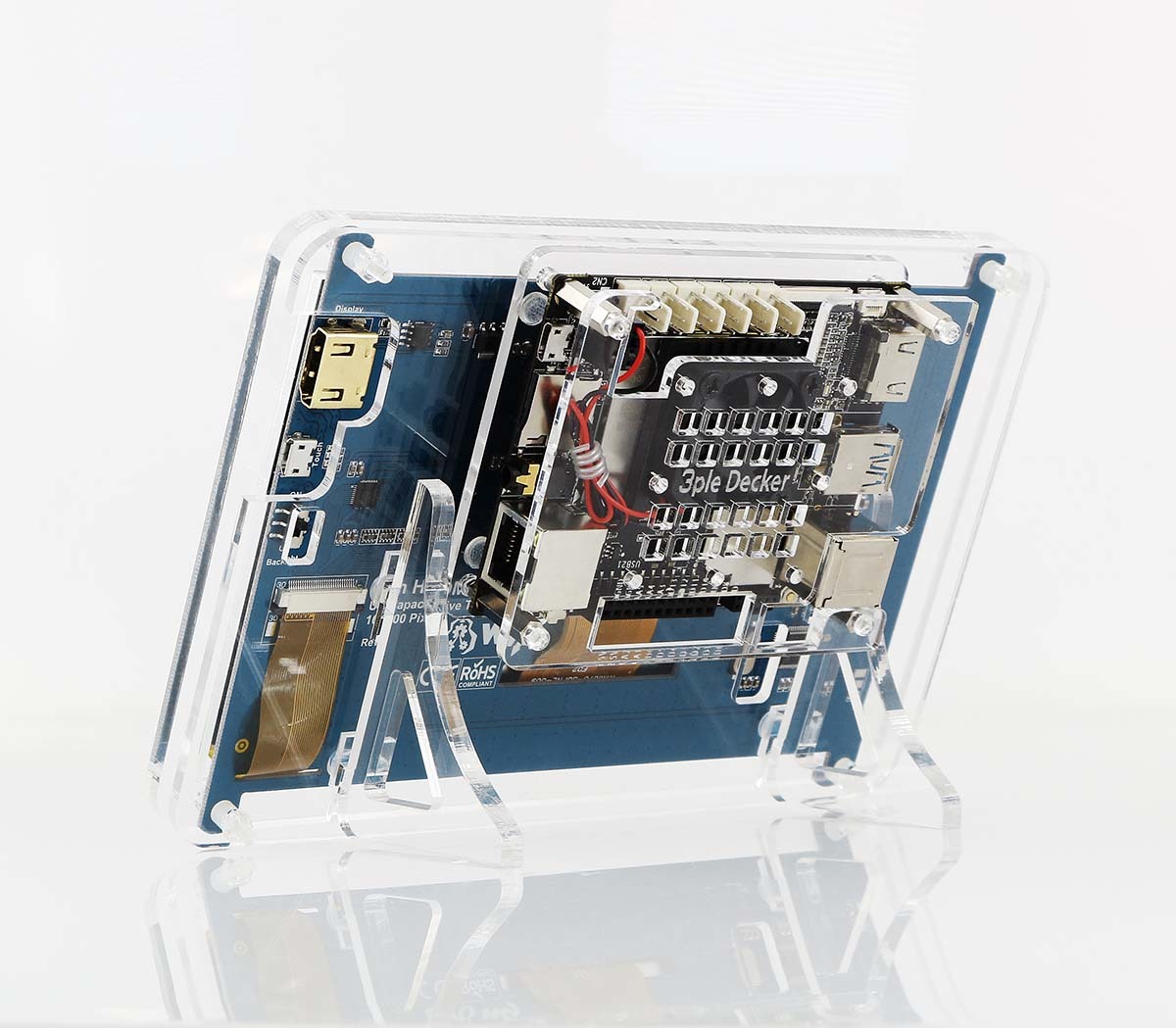

Application example: Stacked in display case of 3ple Decker series

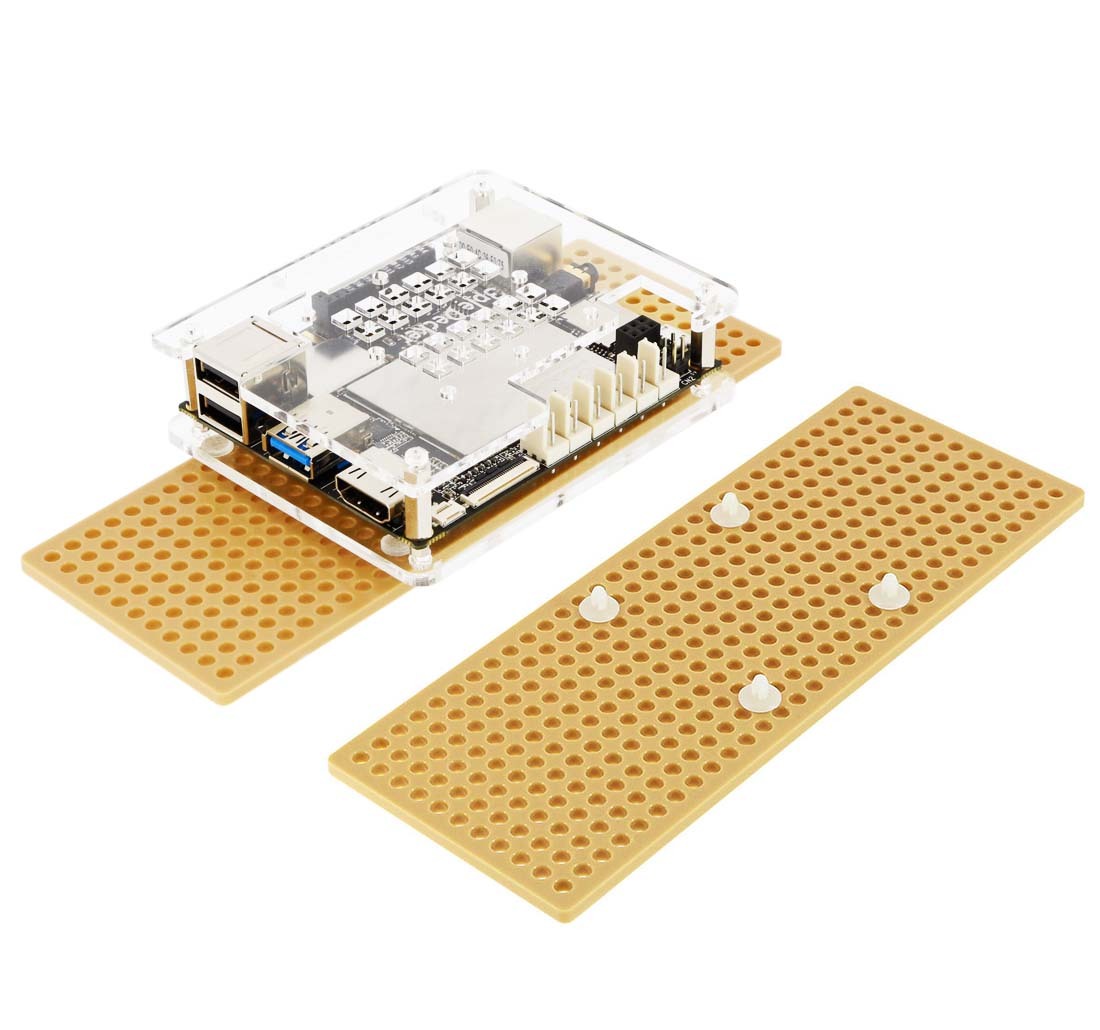

Application example: Stacked on Tamiya's universal plate







【Contents】

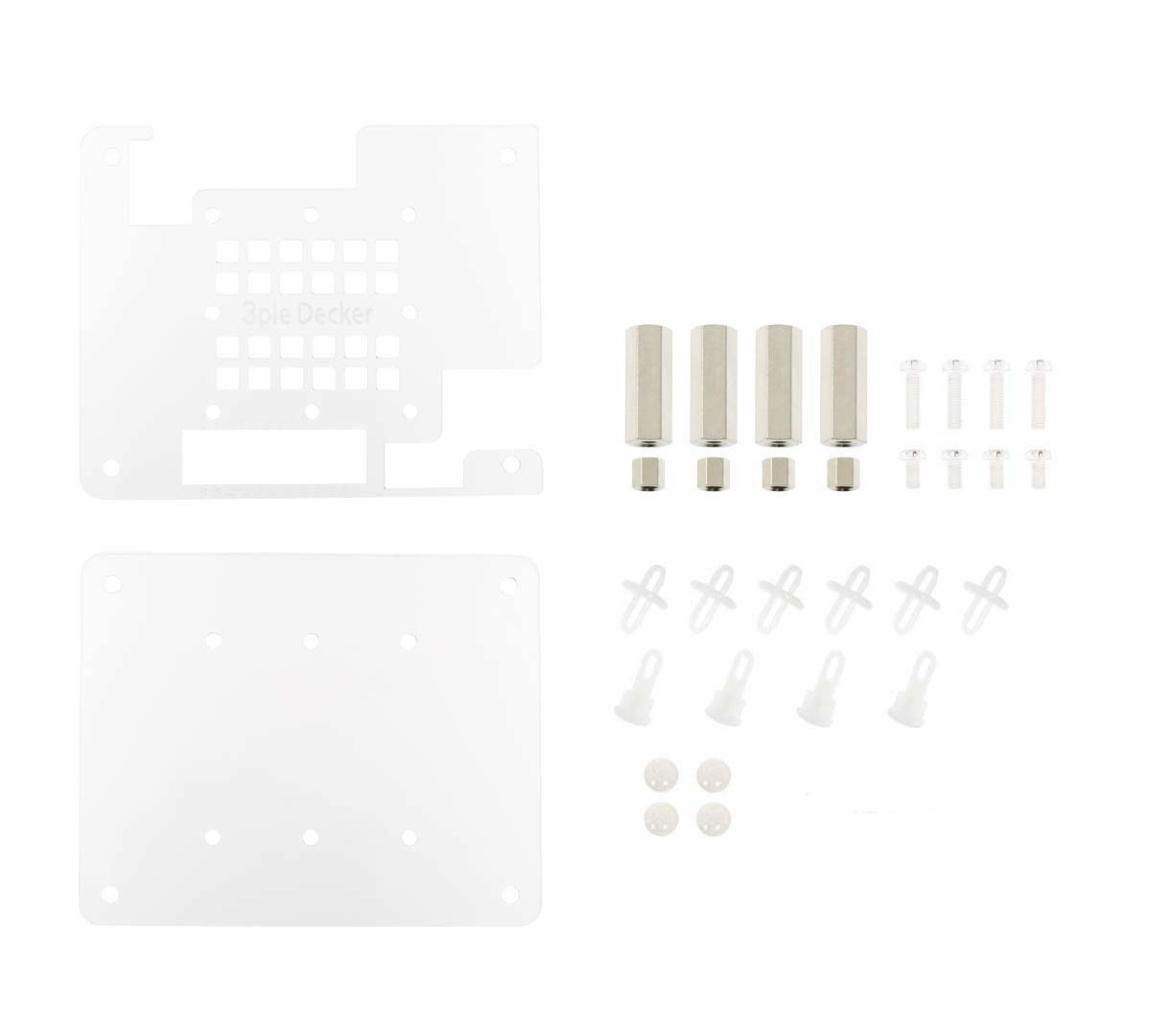

 - Case board material for Latte Panda (upper and lower set) x 1
 - Rubber feet set x 1

  - Resin screw set long and short 4 each

 - 4 metal spacers long and short
 - 2 stacking pins each 4 pieces





※ 1 The photo shows the LattePanda board itself and the heat sink with Fan for product description, but please prepare separately because it is not included in the actual product.

※ 2 This product is a product of TechShare's original brand Physical Computing Lab.

【3ple Decker series】

3ple Decker series is based on the design of Raspberry Pi case products TechShare sells from the past,

Module for Raspberry Pi, BeagleBone, Arduino microcomputer board
A universal circuit module containing breadboards and prototype boards
Case for display
It is a series product consisting of three components, the features are as follows.

Excellent detachability between modules that can stack in multiple stages
Modular ease of recombination functioning as a system


【What can be done with 3ple Decker series】

Using the 3ple Decker series, you can create a single device by stacking the microcomputer board module and various modules and performing simple wiring and programming.

For example, by combining a mobile battery module and a microcomputer board module with wireless function, you can build a cableless computing environment.

Furthermore, by adding a universal circuit module containing sensors, we can prototype an IoT end device that acquires environmental information.

In addition, since each module is not in a state where parts and boards are exposed, you can experience Physical Computing with the sense of assembling blocks, and you can safely use it as a teaching material for PBL education.



Other Images

  • Product Features



    ■ Two kinds of pins are attached


    There are pins avaiable in 3ple Decker Series case for stack , fix into the Tamiya universal plate.




    ■ Two kinds of GPIO covers are attached

    There is an opening in the upper part of the case, making it easy to access GPIO pins.
    Two types of detachable lids are fitted to the opening so as to suppress the entry of dust into the case from the opening.

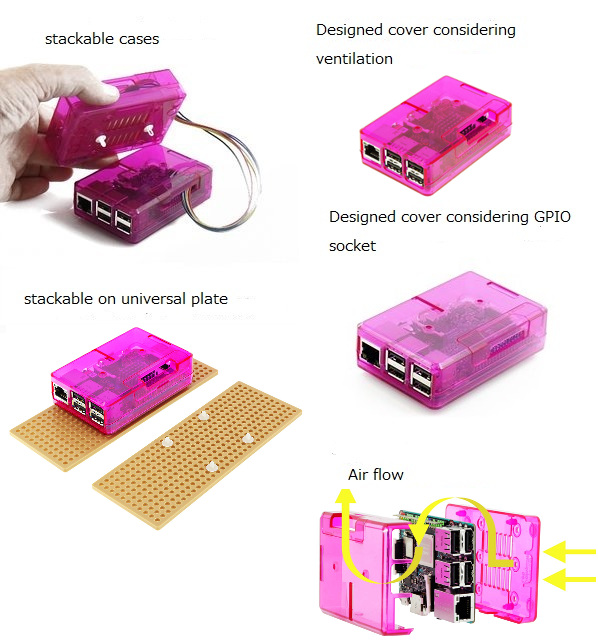

     1. The cover which considered good of the air permeability
    2. A cover considering connecting a pin socket to the GPIO pin
    It is possible to distinguish between two types, making it excellent in practicality and design.


    ■ Other Accessories
    ・ It is designed to be fixed also to Tamiya 's Universal Plate. You can also fix the case with the included screw set or the push pin attached to Tamiya 's Universal Plate.
    ※ Regarding the Pictures, product explanation is given for Universal Plate of Raspberry Pi board and Tamiya. but for actual product please prepare separately.
  • Concept of 3ple Decker series


    On the 3ple Decker series, based on the design of the Raspberry Pi case, a board case for BeagleBone, Arduino, a universal circuit module containing a breadboard and a prototype board, and a series product consisting of three kinds of components of a mobile battery module We are planning.


    ■Configuration of 3ple Decker Series
     □ Microcomputer module
      - For Raspberry Pi
      - BeagleBone for -Black, Green
      - Arudino (Low type): Uno for Leonardo
      - Arduino (High type): Uno or Leonardo + shield
     □ Universal Circuit Module
      - Low type: for half size breadboard
      - High type: same as above
     □ Battery Module

    The characteristics are as follows.

     □ Detachability can be easily stacked in many steps
     □ Module Recombination is easy
     □ Module unit arrangement and while using use with minimum wiring
     □ Mobile power not caught by power supply

    In the case of 3ple Decker series, Raspberry Pi, Arduino, BeagleBone can all be of the same size case. Also, since there is a universal circuit case of the same size, if you use it to put it in the case for each circuit module, you can take out as much as you need when using it and connect it to the board and use it,reusability will be much better.

    Every module arrangement and storing is simple. If you put it in a case on a module basis, storage and extraction is easy.

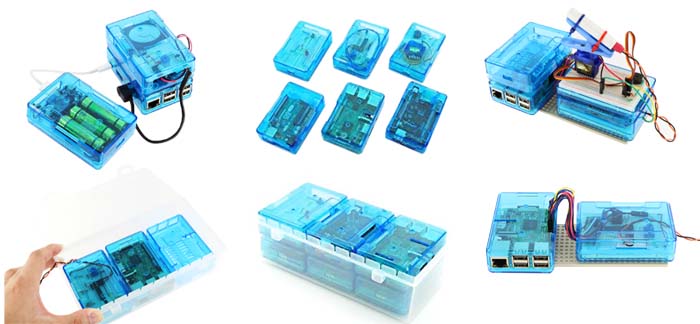

  • 3ple Decker series Application example

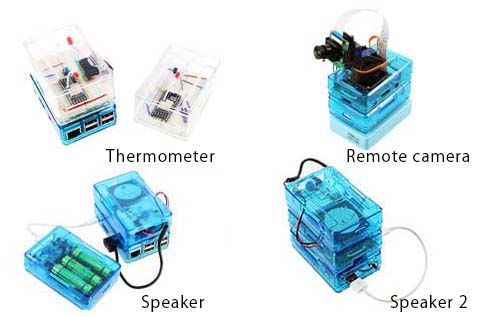

    Using the 3ple Decker Series,By stacking the microcomputer board module and various modules, simple wiring and programming can be performed, so that one device can be created.

    For example, by combining a mobile battery module and a microcomputer board module with wireless function, it is possible to construct a cableless computing environment.
    Furthermore, by adding a universal circuit module containing sensors, IoT's end device that acquires environmental information can be prototyped.
    Also, since each module is not in a state where parts and board are exposed,
    You can experience Physical Computing with the sense of assembling blocks and can use teaching material of PBL education.
