Case for 3ple Decker Raspberry Pi [TSI-3D-Pi-Case]

Case for 3ple Decker Raspberry Pi [TSI-3D-Pi-Case]

Price: US$9.95(tax excl.)

Colors Stock
Clear Available
Smoke Available
Blue Available
Pink Available
Green Available
White Available
Black Available
Colors:

Price: US$9.95(tax excl.)

Quantity:

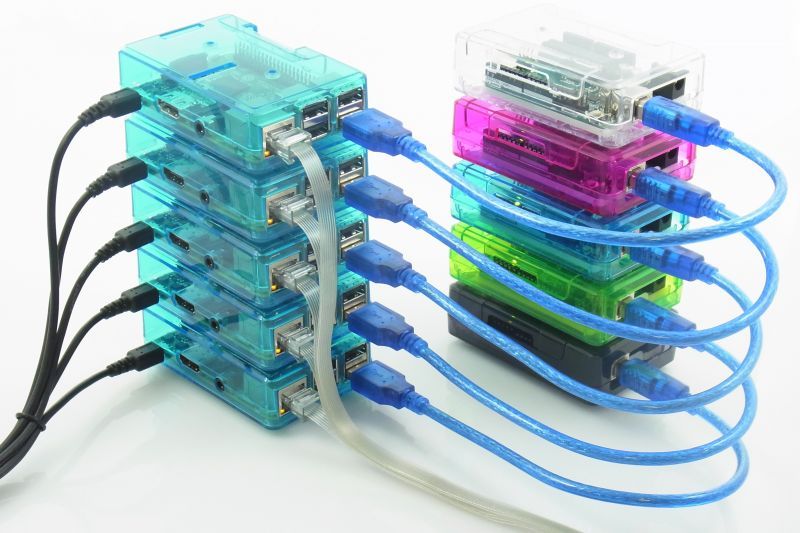

The above stack image is a connection example in which 5 items of this product are piled up.

Actual product will sold by either one of the color unit.



【Product Overview】

It is a case for Raspberry Pi 2 Model B / Raspberry Pi 3 Model B of the Mobile Circuit Block 3ple Decker (Triple / Decker) series that is best suited for prototyping IoT (Internet of Things) products and for PBL education (Project Based Learning education).

Regarding the color variations, 5 colors of clear systems and 2 colors of non-transmission system and can choose a favorite color among an abundant variation.

There are pins available for stacking with the case of 3ple Decker series and also attached with the Tamiya Plate.

There is an opening in the upper part and it easy to access it with GPIO pins。In addition, in order to suppress the entry of dust into the case, two types of detachable lids that match the opening are included. It is possible to distinguish between two types, one designed for improved breathability and the other with consideration for connecting a pin socket to the GPIO pin, making it excellent in practicality and design.



■ Abundant color variations and the incombustible material Options.





3ple Decker series case module、Clear system 5 colors、you can choose colors.Totally 7 colors out of 2 are non- transparent colors.

□ Clear System Colors

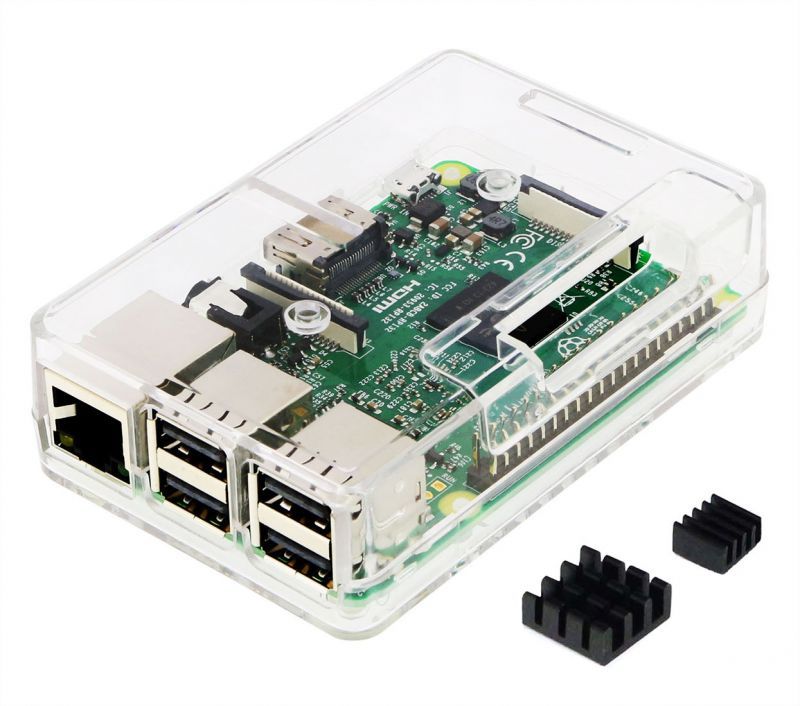

 -Clear

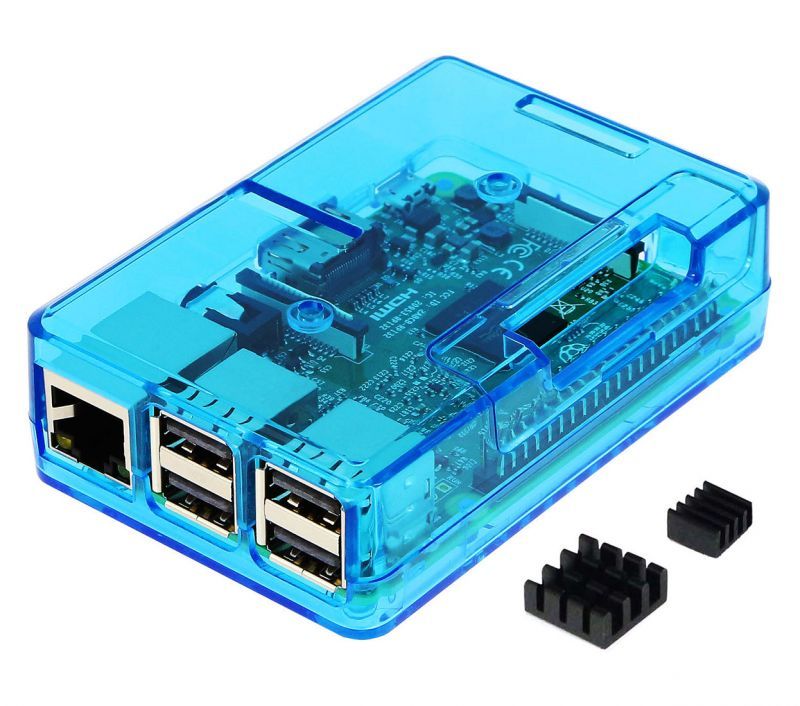

 -Smoke
 -Blue

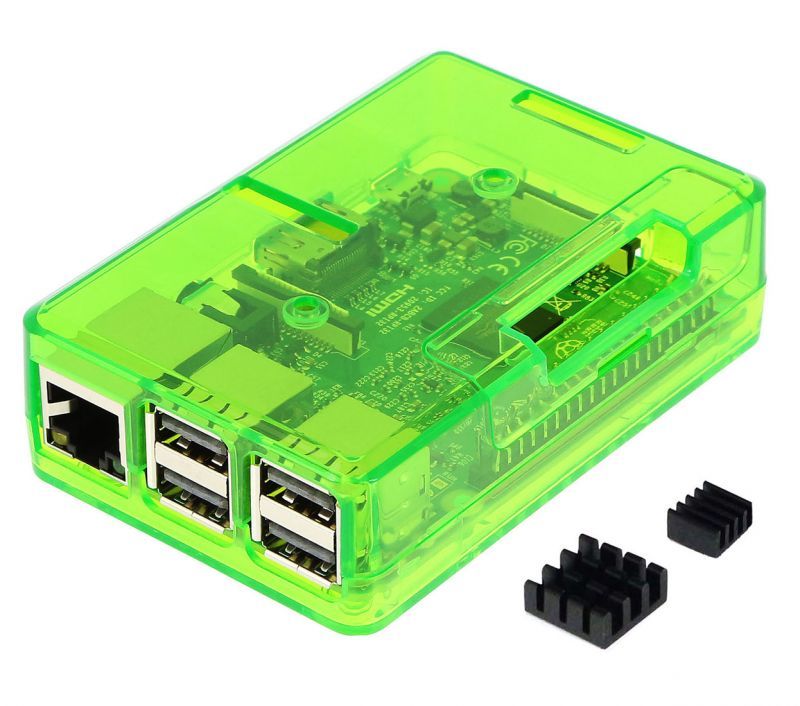

 -Green

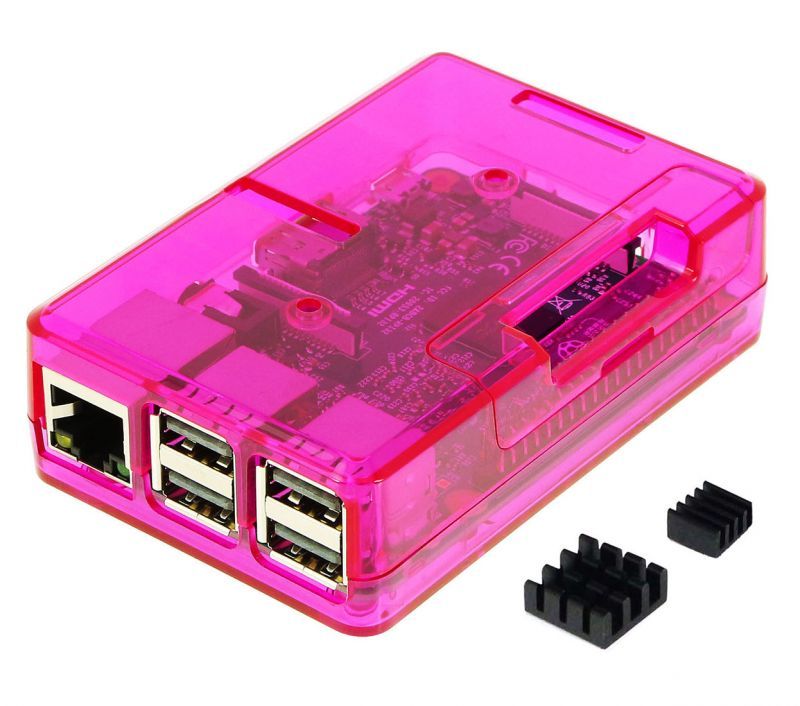

 -Pink

□Pro Non-transmission Color(Incombustible grade V-0 equivalency)
 -White

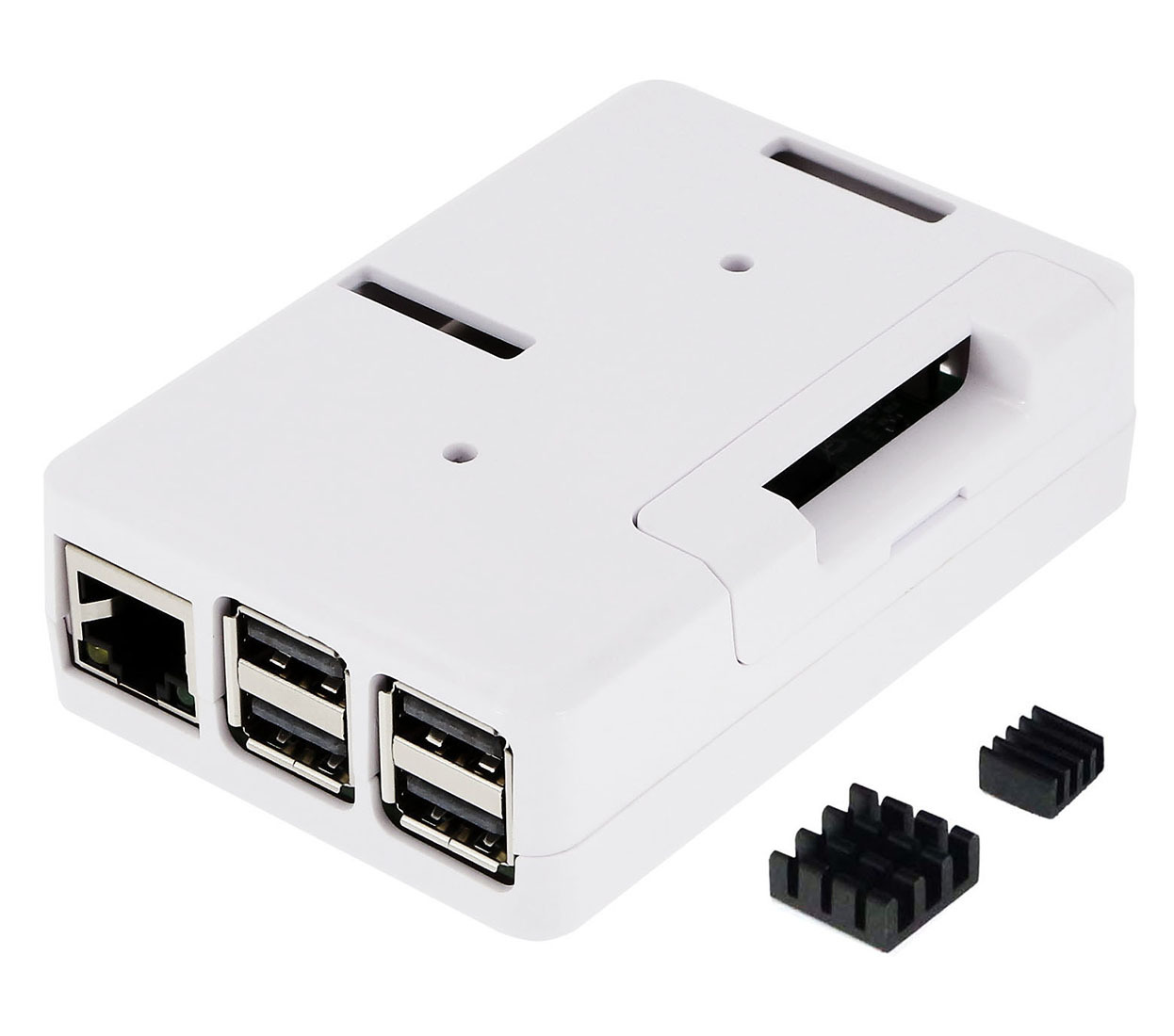

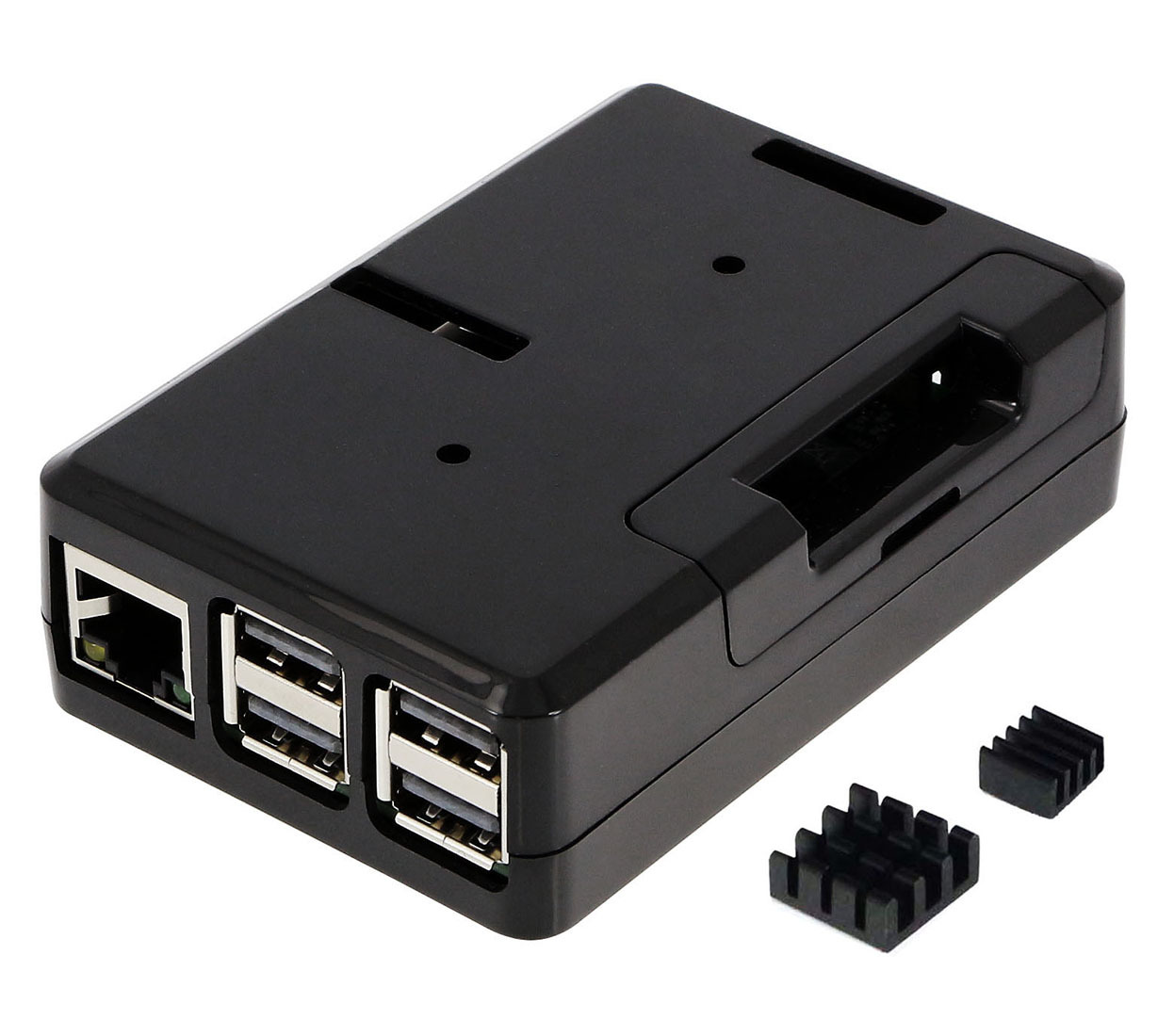

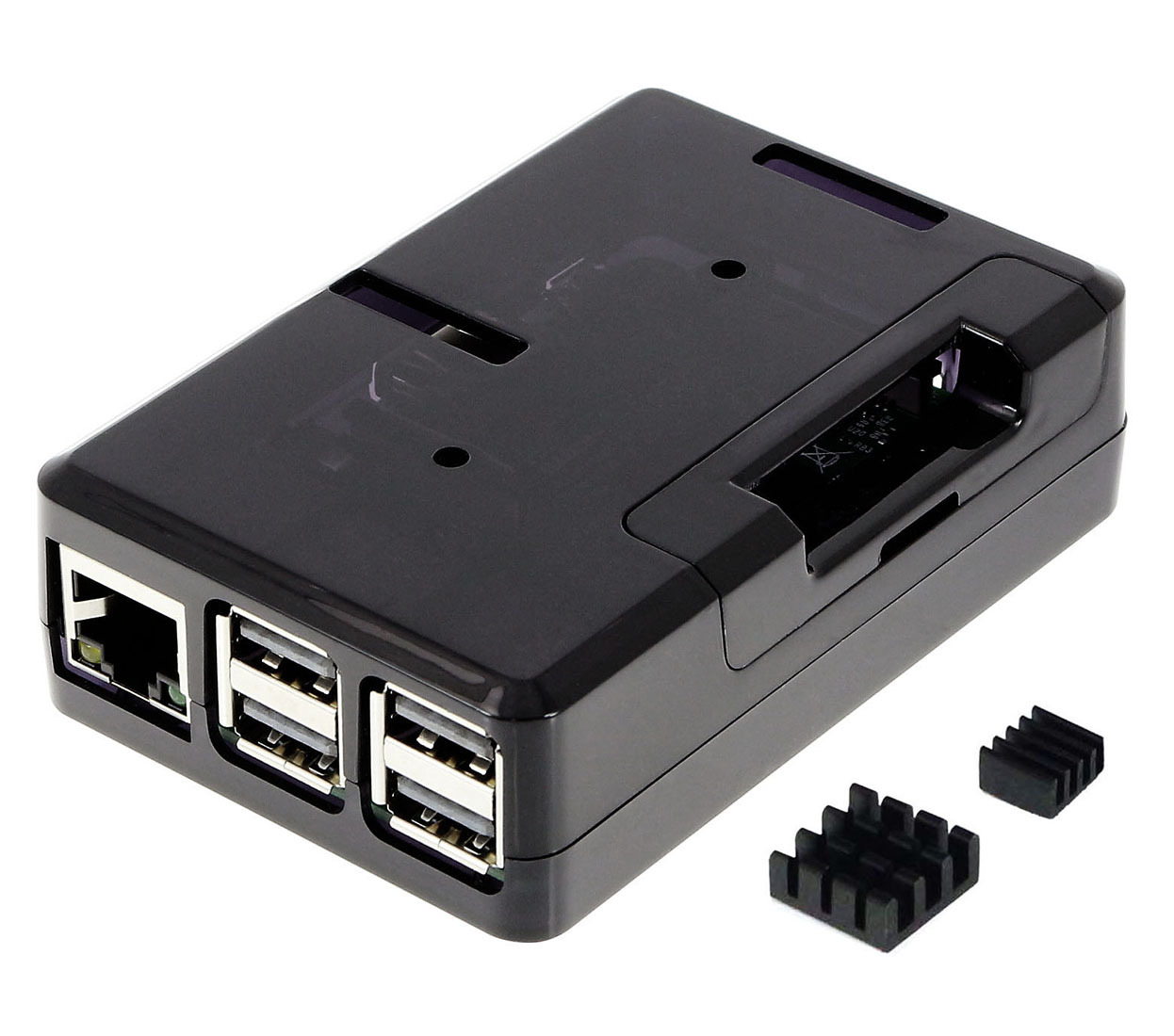

 -Black


Change the color according to the use、Unify with the color of your choice、 depending on the customer you can enjoy color variation. In addition, two colors of nontransparent color are used for cases requiring flame retardancy, since it will be a case using flame retardant material of V - 0 class.

※In Clear Series color Case 、incombustible material is not used.

【Contents】
 - Case for Raspberry Pi 3(Pink) x 1
 - Rubber feet set x 1
 - Screw set x 1
 - heatsink x 2 (Largex1、Smallx1)
 - Top opening lid 2 types 1 each (1 type attached to the case already)


※1 In the picture, the Raspberry Pi board product explanation is shown , but for actual product please prepare separately since the board is not included.

※2 This is a TechShare's original brand Physical Computing Lab Product.

【3ple Decker series】

The 3 dec Decker series is based on the design of the Raspberry Pi case products TechShare has traditionally sold,

  1. Module for Raspberry Pi, BeagleBone, Arduino microcomputer board
  2. A universal circuit module containing breadboards and prototype boards
  3. Mobile battery module (soon to be released)

It is a series product consisting of three components & mdash; nantes, the features are as follows.

  • Excellent detachability between modules that can stack in multiple stages
  • Mobility that does not depend on power supply by mobile battery module
  • As a System,functionality of modularized recombination is easy.



【Things can do it with the 3ple Decker series】

Using 3ple Decker series、By stacking the microcomputer board module and various modules, a device can be crated by simple wiring and programming.

For example, by combining a mobile battery module and a microcomputer board module with wireless function, it is possible to construct a cableless computing environment.

Furthermore, by adding a universal circuit module containing sensors, IoT's end device that acquires environmental information can be prototyped.

Also, since each module is not in a state where parts and board are exposed, You can experience Physical Computing with the sense of assembling blocks and can use teaching material of PBL education.



Other Images

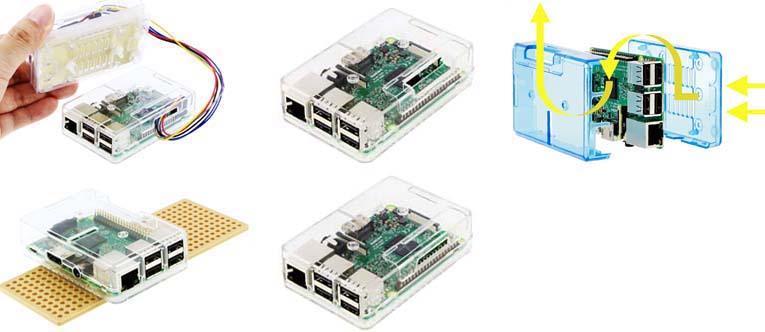

  • Product Features



    ■ Two kinds of pins are attached


    There are pins avaiable in 3ple Decker Series case for stack , fix into the Tamiya universal plate.




    ■ Two kinds of GPIO covers are attached

    There is an opening in the upper part of the case, making it easy to access GPIO pins.
    Two types of detachable lids are fitted to the opening so as to suppress the entry of dust into the case from the opening.
     1. The cover which considered good of the air permeability
    2. A cover considering connecting a pin socket to the GPIO pin
    It is possible to distinguish between two types, making it excellent in practicality and design.


    ■ Other Accessories
    ・ It is designed to be fixed also to Tamiya 's Universal Plate. You can also fix the case with the included screw set or the push pin attached to Tamiya 's Universal Plate.
    ※ Regarding the Pictures, product explanation is given for Universal Plate of Raspberry Pi board and Tamiya. but for actual product please prepare separately.
  • Concept of 3ple Decker series


    On the 3ple Decker series, based on the design of the Raspberry Pi case, a board case for BeagleBone, Arduino, a universal circuit module containing a breadboard and a prototype board, and a series product consisting of three kinds of components of a mobile battery module We are planning.


    ■Configuration of 3ple Decker Series
     □ Microcomputer module
      - For Raspberry Pi
      - BeagleBone for -Black, Green
      - Arudino (Low type): Uno for Leonardo
      - Arduino (High type): Uno or Leonardo + shield
     □ Universal Circuit Module
      - Low type: for half size breadboard
      - High type: same as above
     □ Battery Module

    The characteristics are as follows.

     □ Detachability can be easily stacked in many steps
     □ Module Recombination is easy
     □ Module unit arrangement and while using use with minimum wiring
     □ Mobile power not caught by power supply

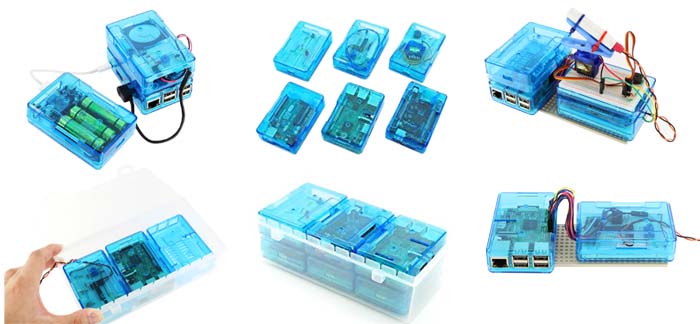

    In the case of 3ple Decker series, Raspberry Pi, Arduino, BeagleBone can all be of the same size case. Also, since there is a universal circuit case of the same size, if you use it to put it in the case for each circuit module, you can take out as much as you need when using it and connect it to the board and use it,reusability will be much better.

    Every module arrangement and storing is simple. If you put it in a case on a module basis, storage and extraction is easy.

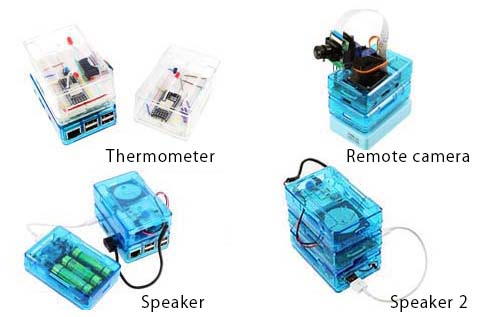

  • 3ple Decker series Application example

    Using the 3ple Decker Series,By stacking the microcomputer board module and various modules, simple wiring and programming can be performed, so that one device can be created.

    For example, by combining a mobile battery module and a microcomputer board module with wireless function, it is possible to construct a cableless computing environment.
    Furthermore, by adding a universal circuit module containing sensors, IoT's end device that acquires environmental information can be prototyped.
    Also, since each module is not in a state where parts and board are exposed,
    You can experience Physical Computing with the sense of assembling blocks and can use teaching material of PBL education.
