■Prodcut Description

It is a commodity set to the classic Arduino Uno Rev.3 board set for the mobile circuit block 3ple Decker (triple · decker) series Arduino case (LOW type).

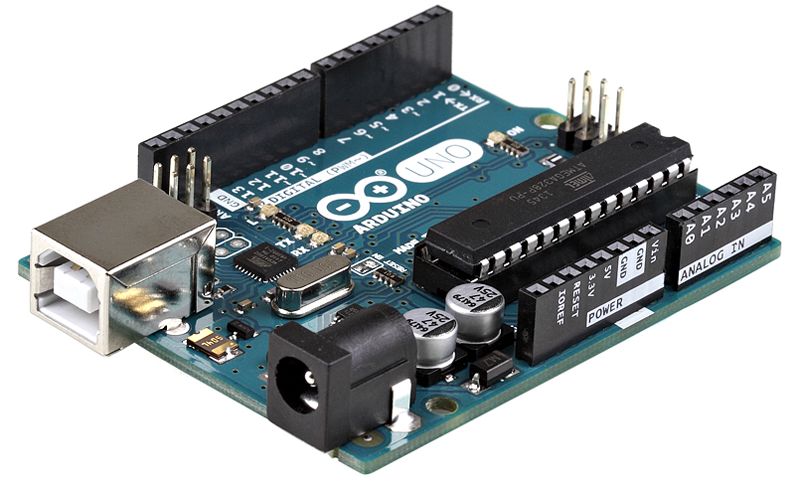

■About Arduino Uno

In the Arduino series,it is the most popular and basic board.

Arduino Uno pin arrangement and code are compatible with Duemilanove, Diecimilla, and other Arduino.So,you can also use existing shields, codes and libraries.



Table Comparision for Arduino Mega2560 Rev3 and Arduino UNO Rev3


Arduino Uno R3
(our Prodcut)

Arduino Mega2560 R3

Microcontroller
(Atmel AVR)
ATmega328ATmega2560
Operating voltage5 V5 V
Recommended input voltage7-12 V7-12 V
Rated input voltage6-20 V6-20 V
Number of digital I / O pins14 (6 pin inside corresponds PWM output)54 (15 pins inside correspond to PWM output)
Number of analog input pins616
Digital output load current40 mA40 mA
3.3 V pin load current50 mA50 mA
Flash memory32KB (Within 0.5 KB used by the bootloader)256KB (8 KB used by the boot loader)
StaticRAM2 KB8 KB
EEPROM1 KB 4 KB
Clock Speed16 MHz16 MHz

 When using External mode with MATLAB / Simulink's hardware support function (Simulink Support Package for Arduino), please use Arduino Mega 2560 because it will not work on Uno due to memory limitation.

■About 3ple Decker

It is a mobile circuit block series suitable for prototyping IoT (Internet of Things) products and PBL education (Project Based Learning education) application.

3ple Decker series case module、Totally 7 colors out of 2 are non- transparent colors.,5 are Clear system colors、you can choose any colors.

□ Clear System Color

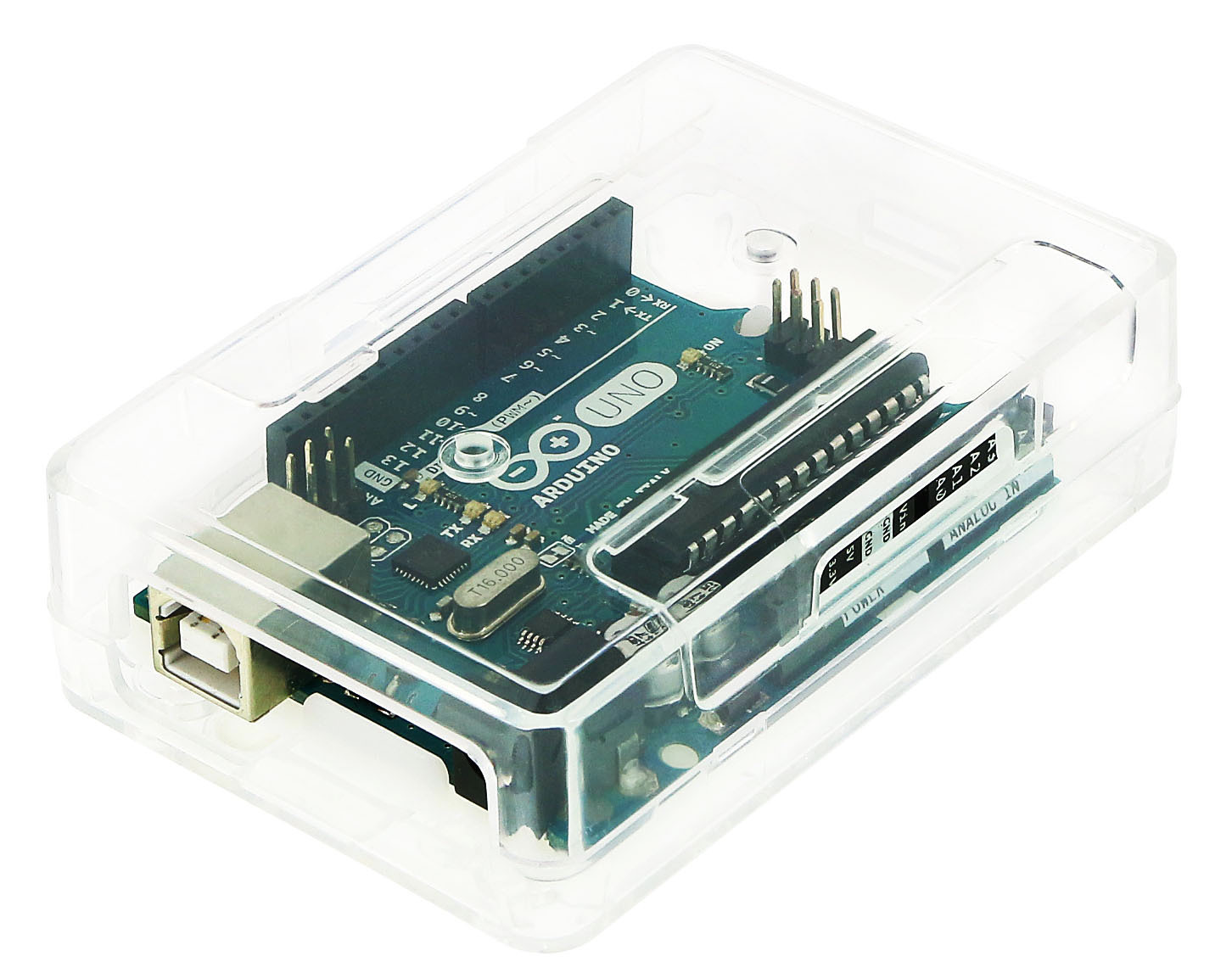

  • Clear
  • Smoke

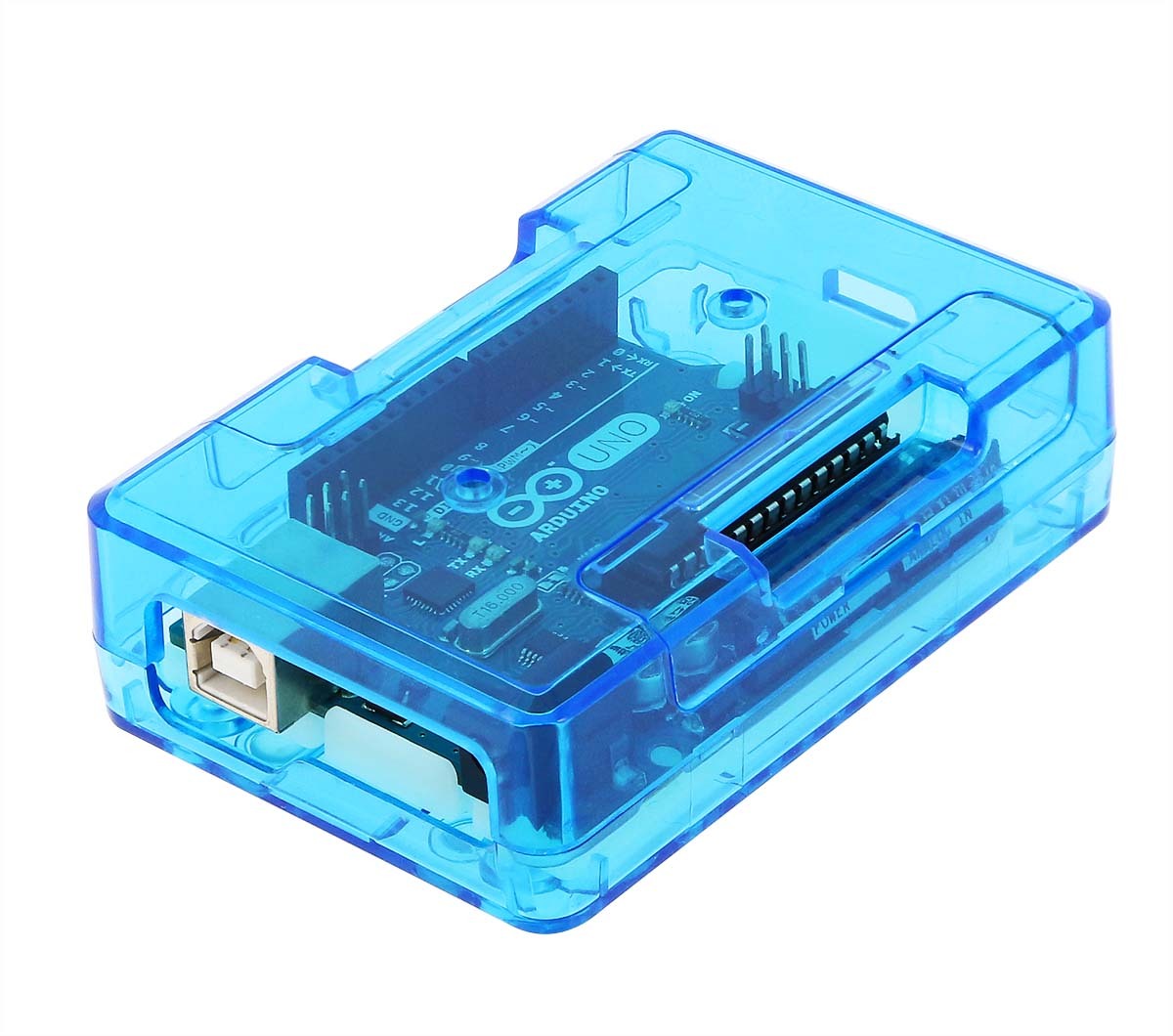

  • Blue

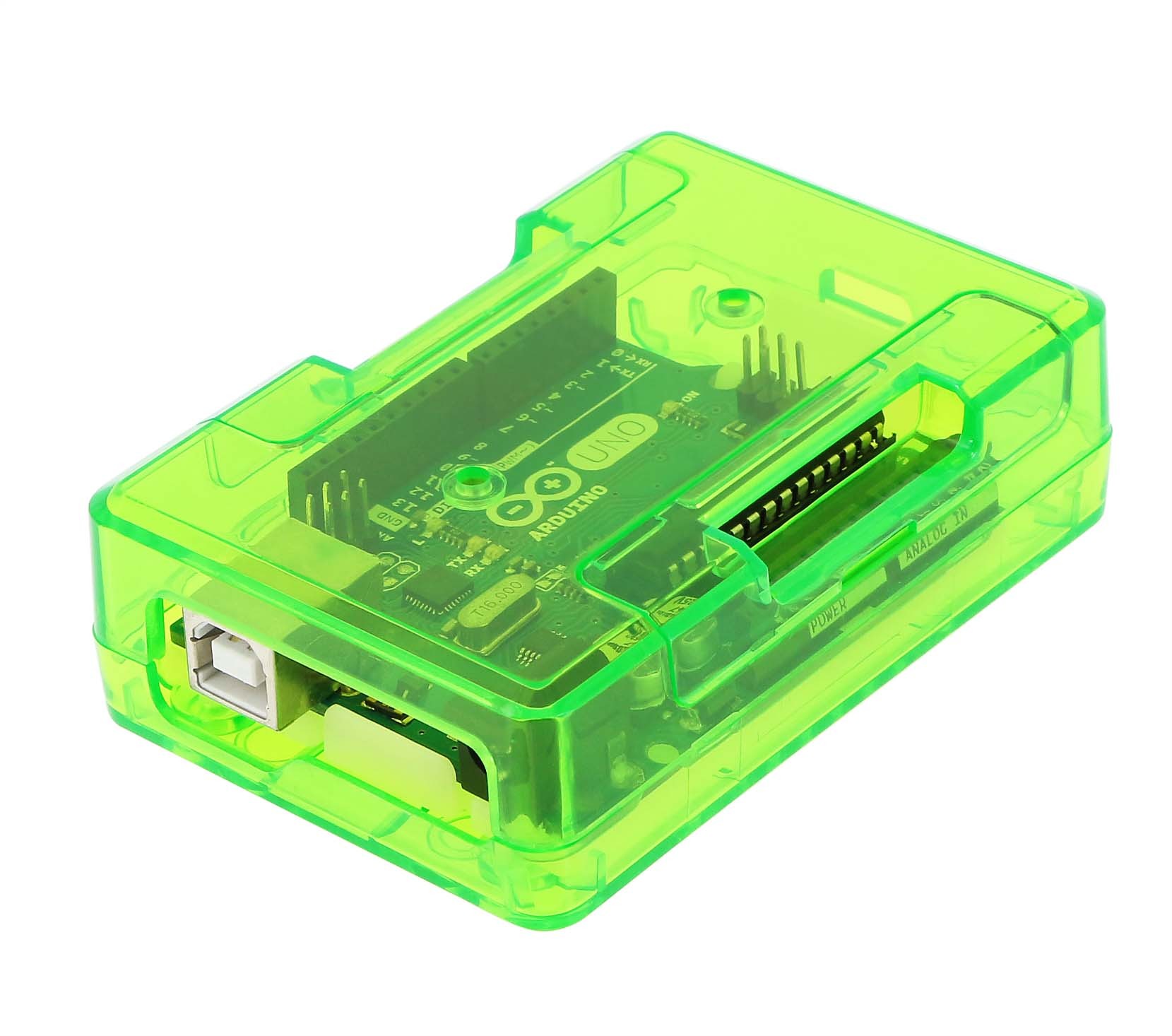

  • Green

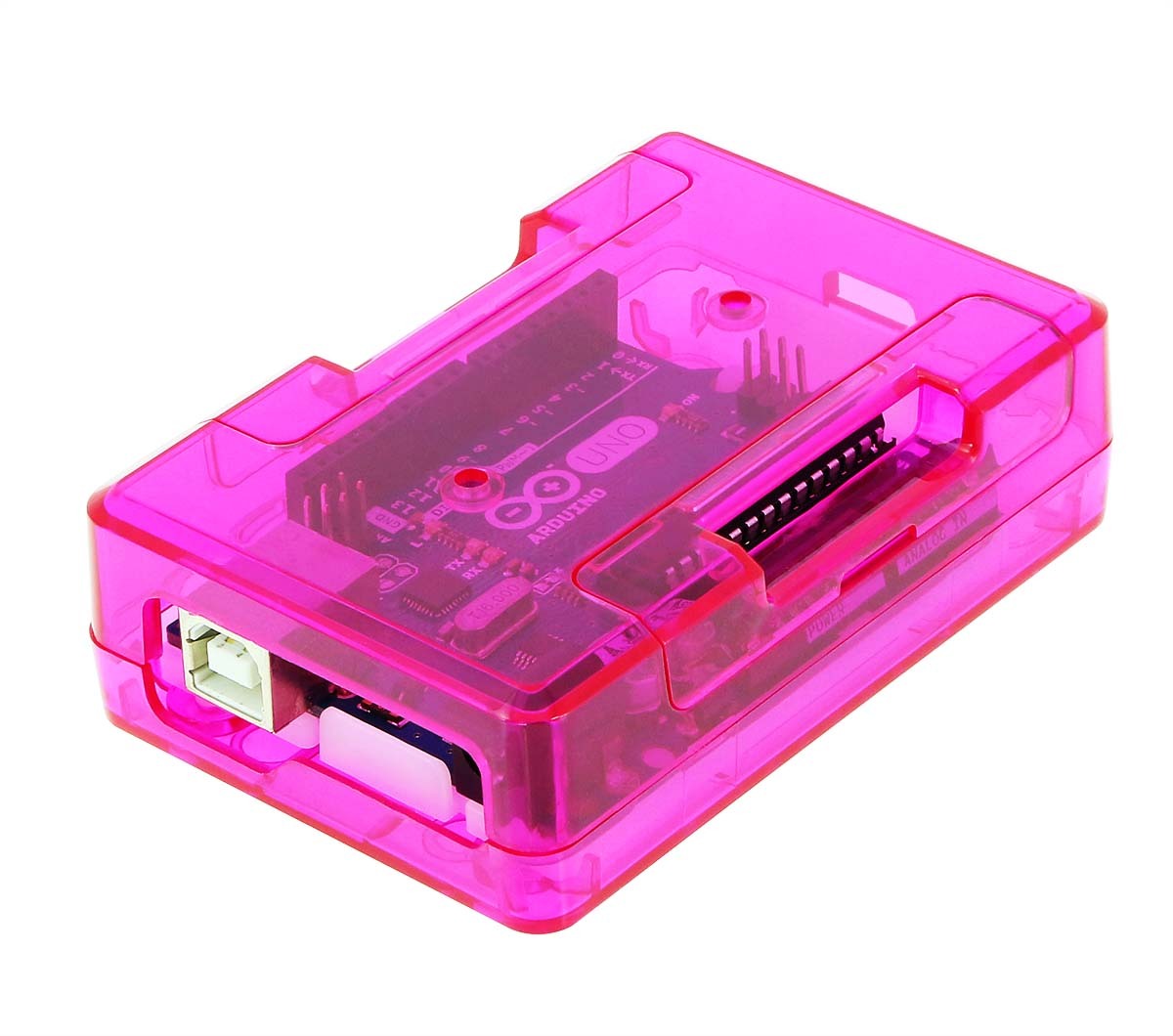

  • Pink

 □ Pro Non-transmission Color(Incombustible grade V-0 equivalency)

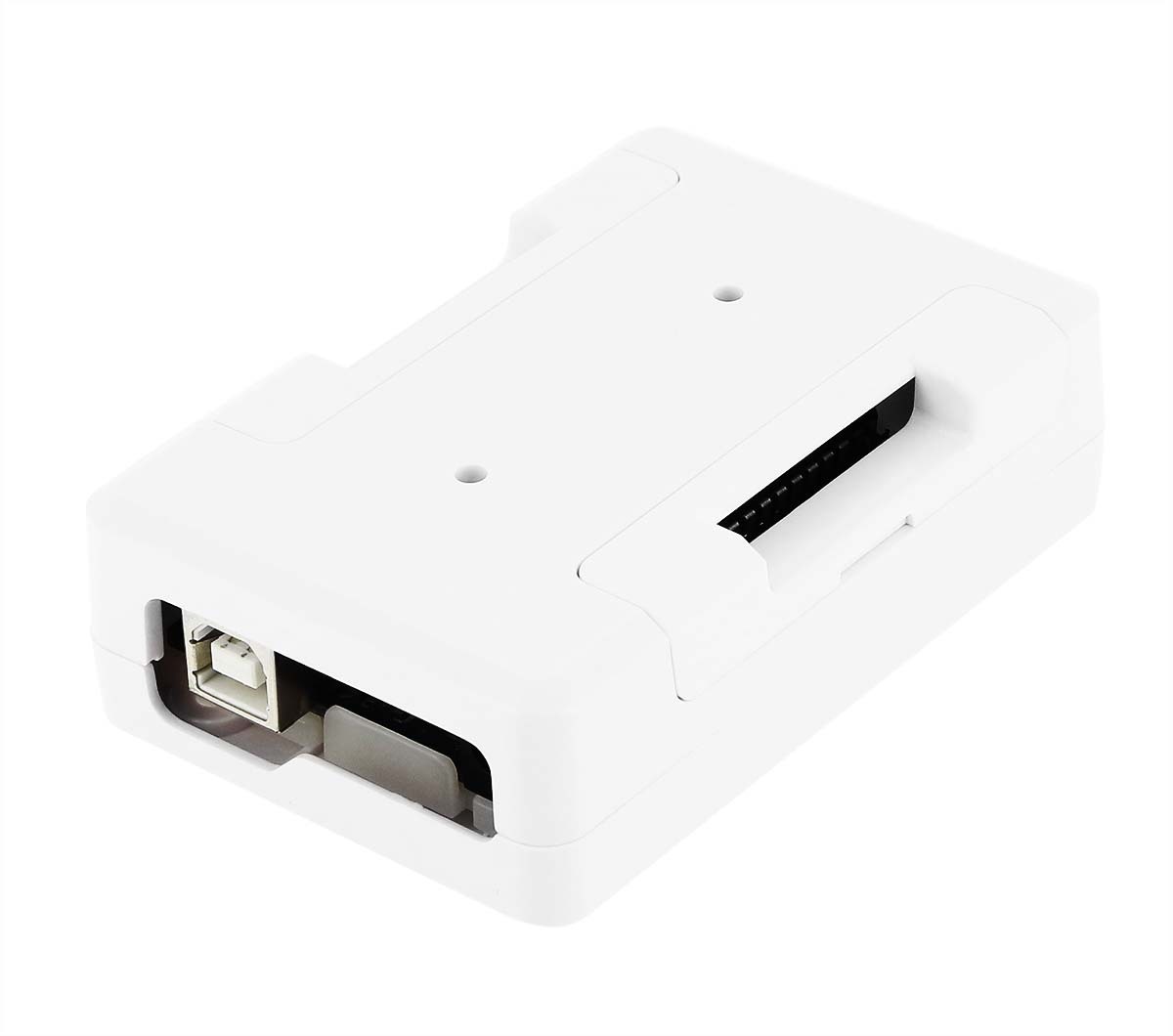

  • White

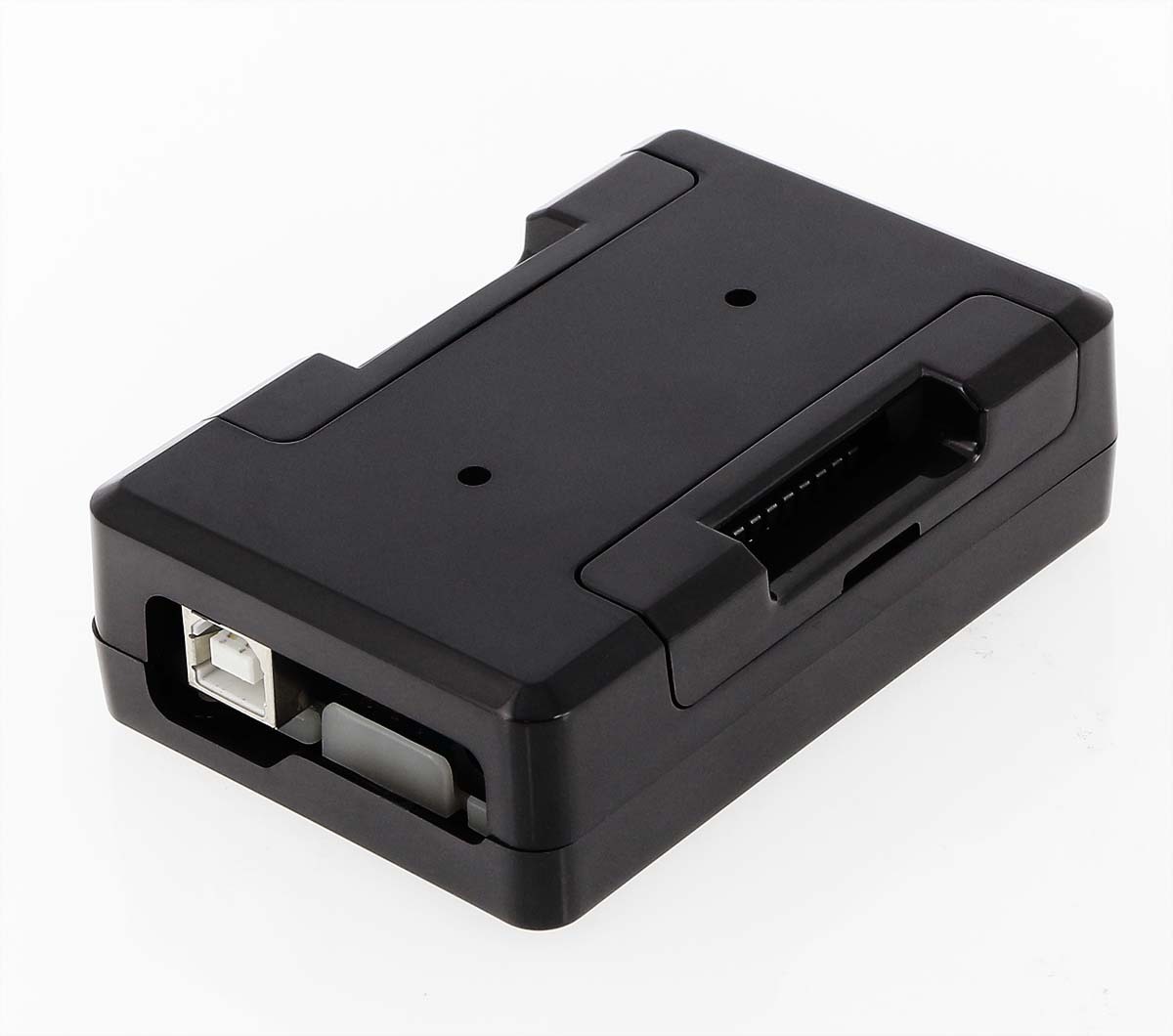

  • Black

Change the color according to the use、Unify with the color of your choice、 depending on the customer you can enjoy color variation. In addition, two colors of nontransparent color are used for cases requiring flame retardancy, since it will be a case using flame retardant material of V - 0 class.

<Contents>

  • Arduino Uno Rev.3 x 1
  • Low case for 3ple Decker Arduino x 1
  • Arduino adapter x 1
  • Set of plastic pin for connection x 1
  • Rubber feet set x 1
  • Screw set x 1
  • Top opening lid 2 pairs 1 each (1 type attached to the case already)

■Note

 ※1. Reference books are not attached.

 ※2. Flame-retardant materials are not used for clear-based color cases.

 ※3. This is a TechShare's original brand Physical Computing Lab product.
