Computer System Exercises Classroom Kit - for Arduino [TSI-005]

Computer System Exercises Classroom Kit - for Arduino [TSI-005]

Price: US$69.80(tax excl.)

Available
Quantity:

■Product Description

This product is an Arduino kit for practical computer system exercises for universities that is actually used in science and engineering university computer calculator exercises.

By developing one step from conventional programming exercises, you can build more practical exercise lessons by controlling and operating real things.
When customization is necessary to the syllabus of the individual class,customization also possible if you can Consult.Please contact us individually.

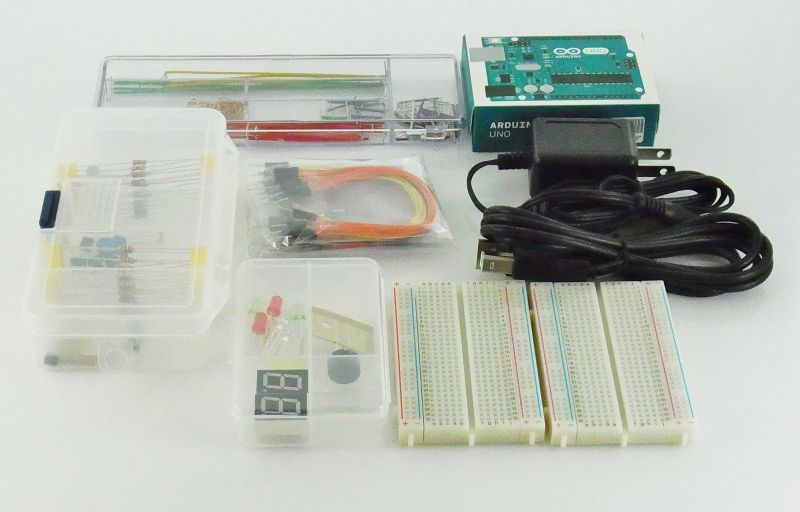

■Contents
□Microcomputer board · Power supply
-Arduino Uno Rev3 x1
-AC adapter (DC 9 V 1.3 A) x 1
-USB Cable(A-B)1.5m  x1

□Wiring parts
-Breadboard  x2
-U-shaped jumper wire (hard) x 1
-Jumper - wire set x 1 (140 mm × 10 pieces, 180 mm × 5 pieces, 230 mm × 5 pieces (a total of 20 pieces)

□Sensor switch
-CDS cell (φ 5 type) x 1
-Temperature sensor (LM 35 DZ) x 1 * Measurement temperature range (0 to 100 ° C)
-TACT Switch x 2

□LED・スピーカー
-Ultra high brightness red 7-segment LED display (A-551SRD) x 2 * anode common
-5 mm red LED x 2
-5mm Yellowish green LEDx2
-5mm Yellow LEDx2
-5mm Blue color LEDx2
-Piezoelectric speaker (SPT 08 - Z 185) x 1

□semiconductor
-Transistor (2SC1815 (L) - GR) x1
-Transistor (2SA1015-GR) x 2
-MOS-FET (2N7000) x1
-General purpose small signal high speed switching diode (1N 4148) x 1 * 100 V 200 mA
-General purpose rectification diode (1N 4007) x 1

□Resistance
-Semi-fixed resistance 10 kΩ (with knob)
-Carbon film resistance (carbon resistance 1/4 W)
  330Ω  x10
  1kΩ  x10
  2.2kΩ x 5
    4.7kΩ x5
  10kΩ  x10
  22kΩ  x 5
  1MΩ  x 5

□condenser
-Multilayer ceramic capacitor 0.1 μF 50 V x 2
-Multilayer ceramic capacitor 4.7 μF 16 V x 1

□Case
-Case(Large)x1
-Part Case (Medium)x1
-Part Case (Small)x1

Cautionary Note
-This kit does not include any additional  manuals.
