3ple Decker Circuit Case(High) [TSI-3D-CIR-Case-H]
Price: US$9.95(tax excluded)
Product Overview

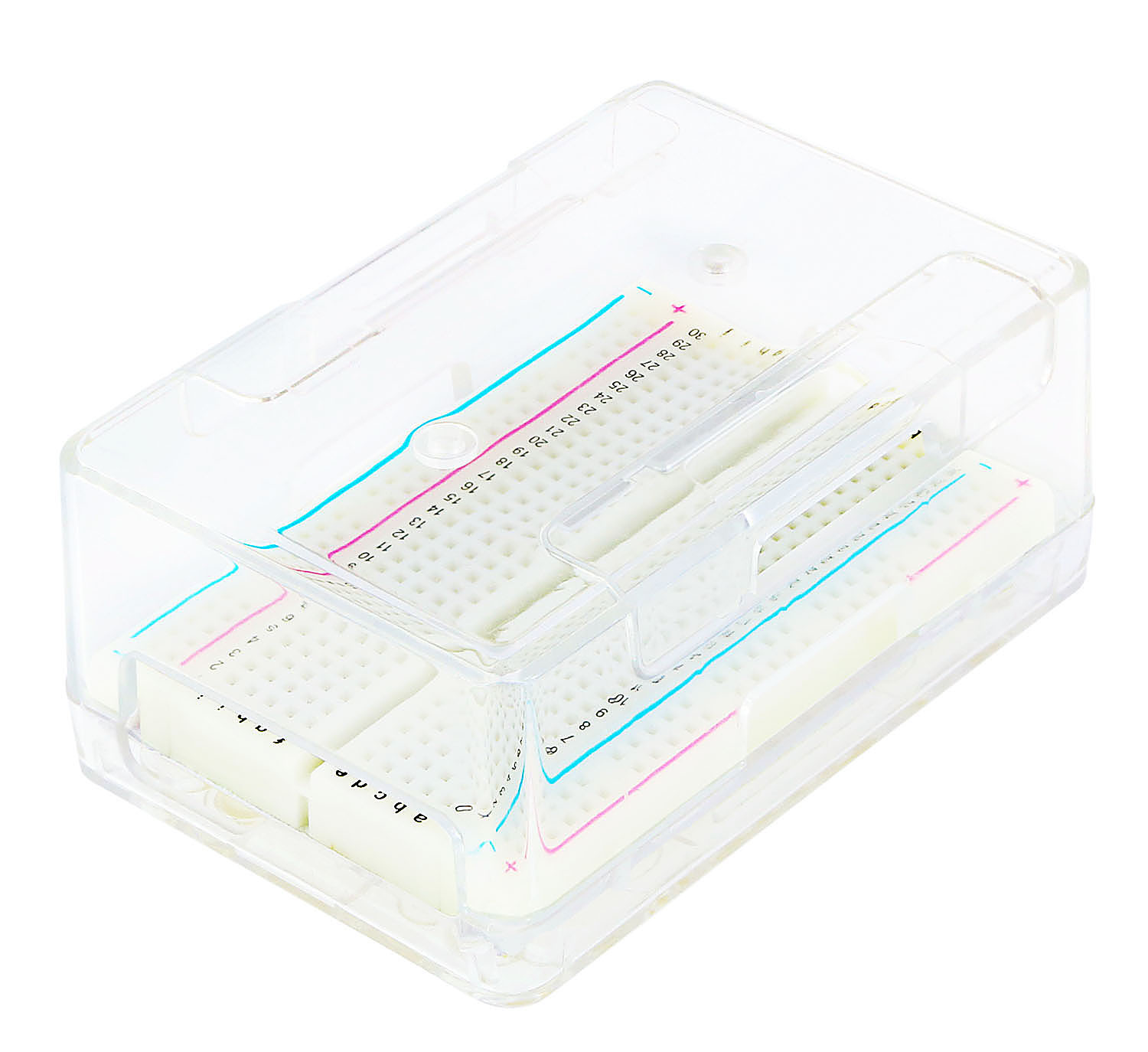

It is a universal circuit case of the mobile circuit block 3ple Decker (triple · decker) series suitable for prototyping IoT (Internet of Things) products and PBL education (Project Based Learning education),It is suitable for storing half size (54 mm x 82 mm) breadboards and universal boards.
■ Abundant color variations and the incombustible material Options.

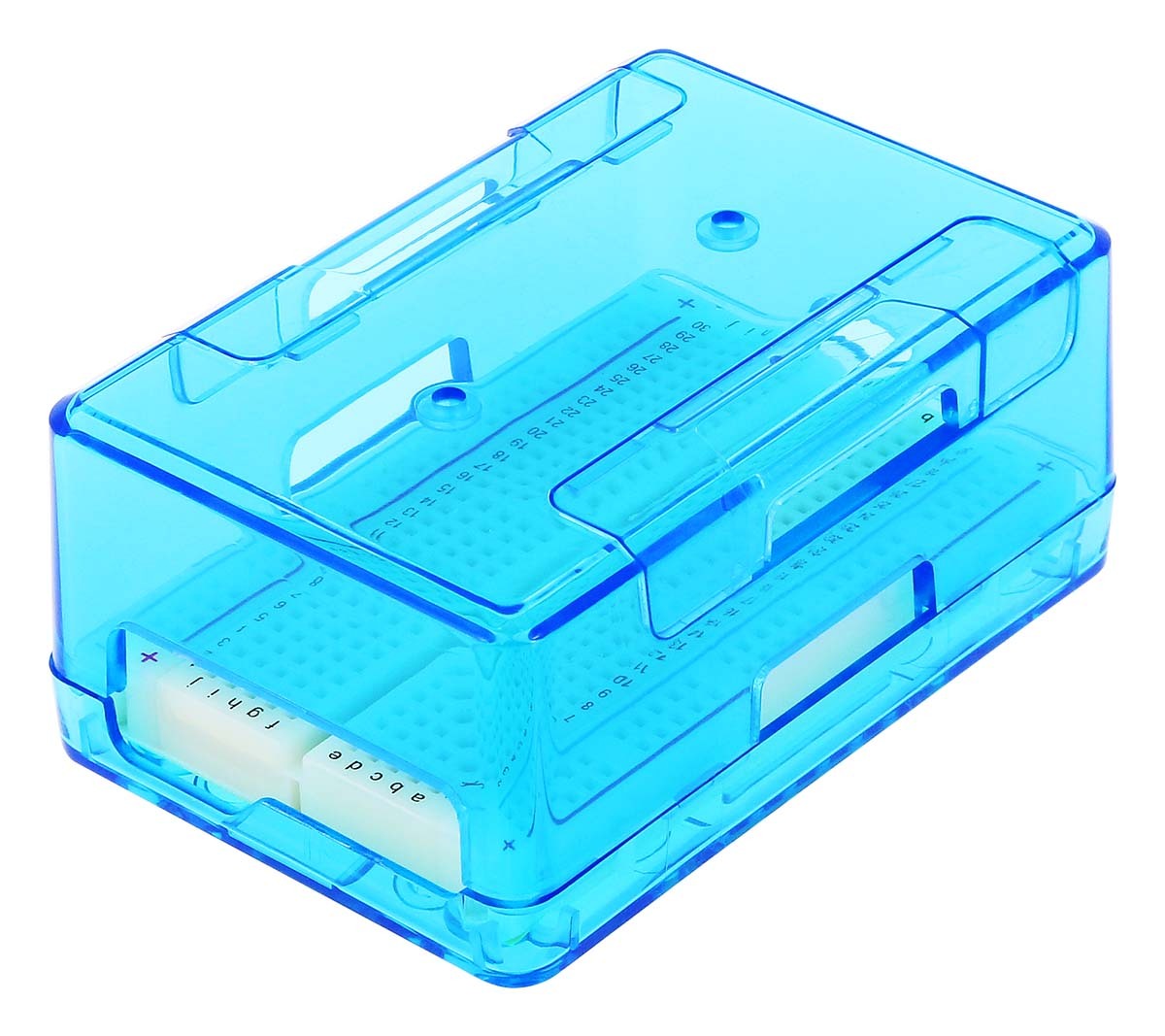

3ple Decker series case module、Clear system 5 colors、you can choose colors.Totally 7 colors out of 2 are non- transparent colors.
□ Clear System Colors
－Clear
－Smoke
－Blue

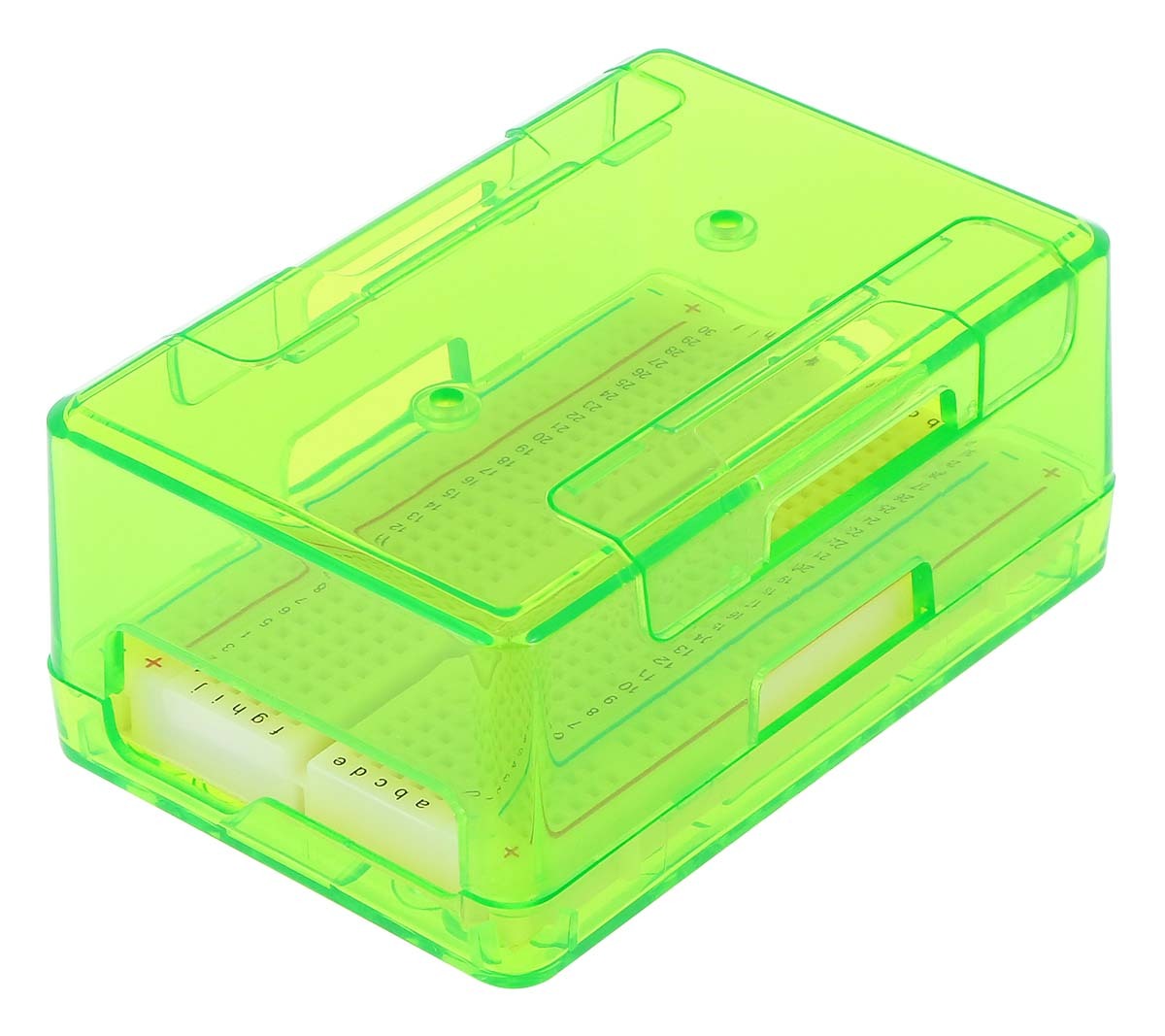

－Green

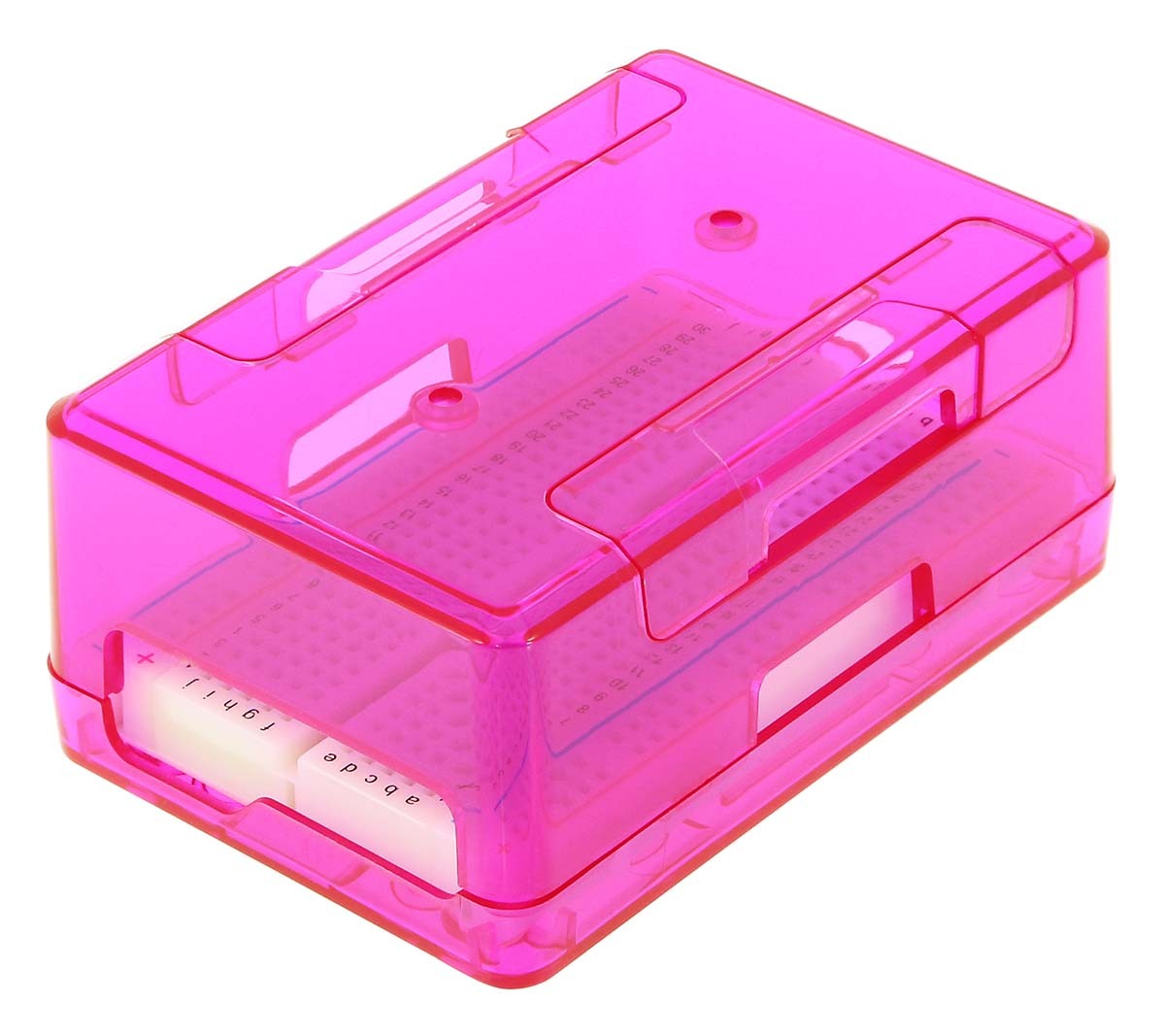

－Pink
□Pro Non-transmission Color（Incombustible grade V-0 equivalency)

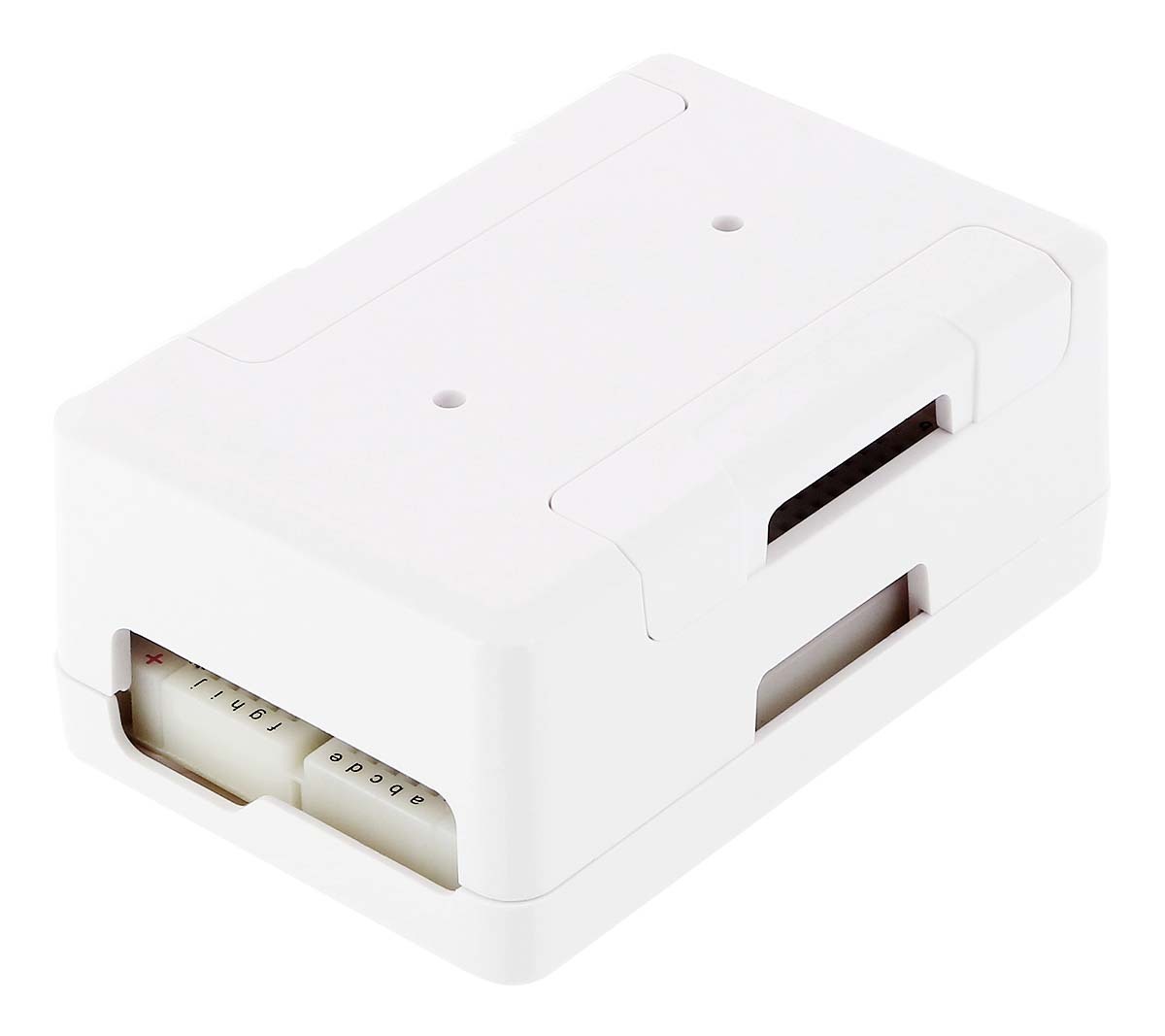

－White

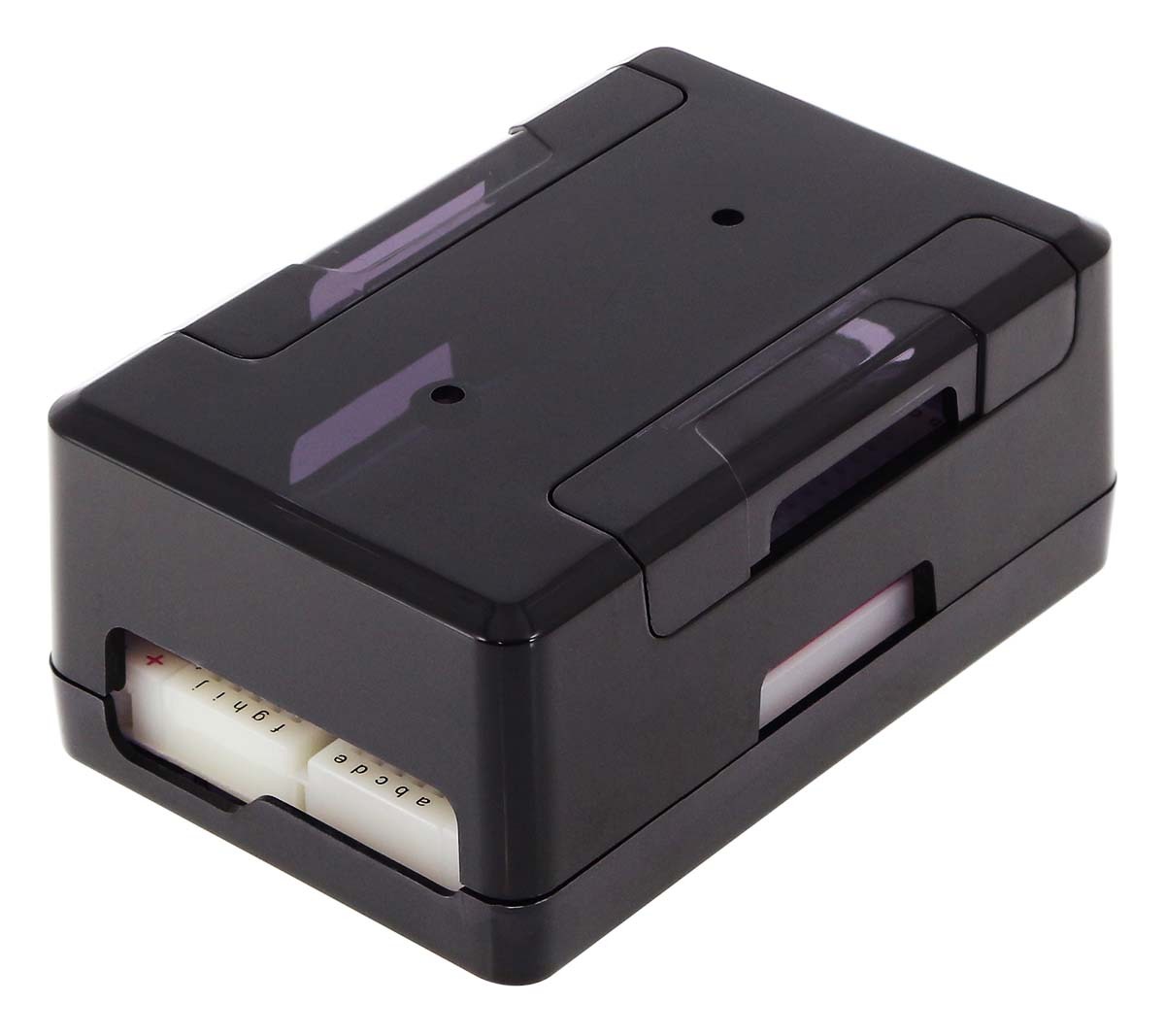

－Black
Change the color according to the use、Unify with the color of your choice、 depending on the customer you can enjoy color variation. In addition, two colors of nontransparent color are used for cases requiring flame retardancy, since it will be a case using flame retardant material of V - 0 class.
※In Clear Series color Case 、incombustible material is not used.
【Contents】
- Case for Arduino (Low Type, Green) x 1
- Top opening 2 lids each 2 (one type already attached to the case)
- Bread Board
- Rubber feet
- A set of screws, a set of pins for stacking
※1 In the picture, the Raspberry Pi board product explanation is shown , but for actual product please prepare separately since the board is not included.
※2 This is a TechShare's original brand Physical Computing Lab Product.

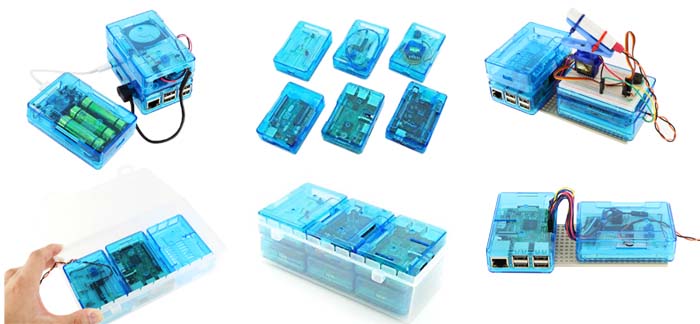

Other Images
-
↑Click to Maximize
Product Overview

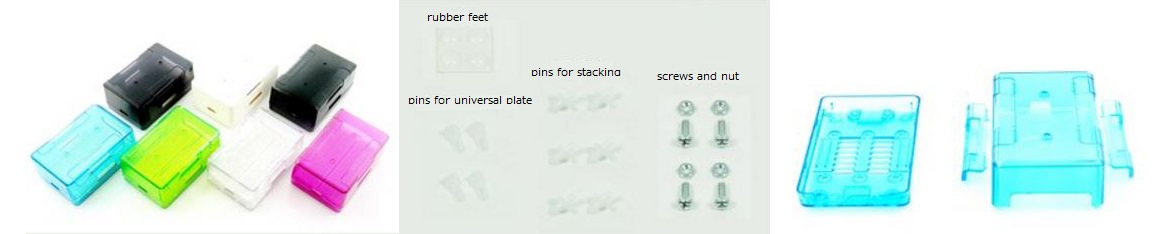

■ Two Kinds of pins are included
There are pins avaiable in 3ple Decker Series case for stack , and also for fix into the Tamiya universal plate.
■ Suitable Size for Half size breadboard
54 mm × 82 mm size of breadboard will fits exactly.
Since universal board of the same size also fits, for example, when prototyping with bread board, it is used as a container for protecting parts,
After fixing the circuit and soldering it to the universal board, you can use it as a normal case.
The internal height is approximately 2 cm high.
■ There is an opening at the top of the case & the removable cover case, and it is possible to route the wiring from there.
Two types of removable lids are included,in order to suppress the entry of dust into the case.
■ Other accessories

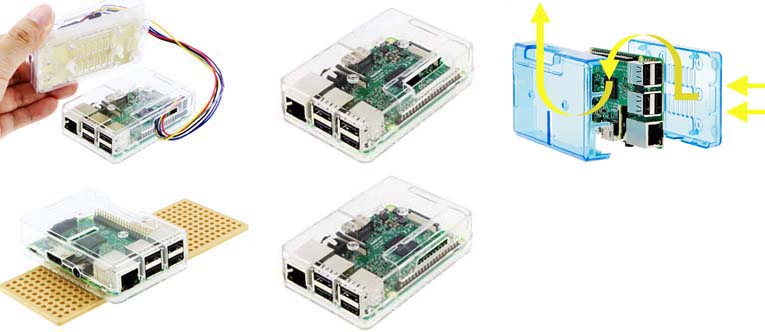

It is designed like that can able to fix into Tamiya 's Universal Plate using the included screw set.
※1 The picture on the left is an example of installing a case for Raspberry Pi. The universal circuit case can also be stacked or attached to the Universal Plate in the same way.
※2 Regarding the Pictures, product explanation is given for Bread & Universal board. but for actual product please prepare it separately.
-
↑Click to Maximize
■Concept of 3ple Decker series
On the 3ple Decker series, based on the design of the Raspberry Pi case, a board case for BeagleBone, Arduino, a universal circuit module containing a breadboard and a prototype board, and a series product consisting of three kinds of components of a mobile battery module We are planning.
■Configuration of 3ple Decker Series
□ Microcomputer module
－ For Raspberry Pi
－ BeagleBone for -Black, Green
－ Arudino (Low type): Uno for Leonardo
－ Arduino (High type): Uno or Leonardo + shield
□ Universal Circuit Module
－ Low type: for half size breadboard
－ High type: same as above
□ Battery Module
The characteristics are as follows.
□ Detachability can be easily stacked in many steps
□ Module Recombination is easy
□ Module unit arrangement and while using use with minimum wiring
□ Mobile power not caught by power supply
In the case of 3ple Decker series, Raspberry Pi, Arduino, BeagleBone can all be of the same size case. Also, since there is a universal circuit case of the same size, if you use it to put it in the case for each circuit module, you can take out as much as you need when using it and connect it to the board and use it,reusability will be much better.
Every module arrangement and storing is simple. If you put it in a case on a module basis, storage and extraction is easy.
※ The picture is an example focusing on cases for Raspberry Pi. -
↑Click to Maximize

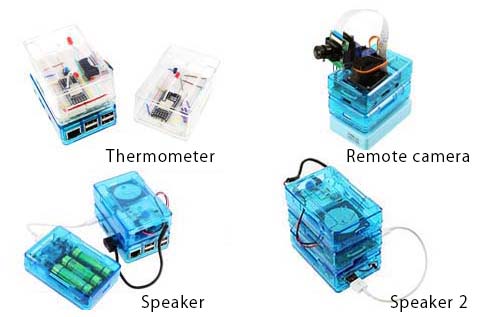

3ple Decker series Application example
Using the 3ple Decker Series,By stacking the microcomputer board module and various modules, simple wiring and programming can be performed, so that one device can becreated.
For example, by combining a mobile battery module and a microcomputer board module with wireless function, it is possible to construct a cableless computing environment.
Furthermore, by adding a universal circuit module containing sensors, IoT's end device that acquires environmental information can be prototyped.
Also, since each module is not in a state where parts and board are exposed,
You can experience Physical Computing with the sense of assembling blocks and can use teaching material of PBL education.
※Example picture is mainly focusing on cases for Raspberry Pi.
Price: US$9.95(tax excluded)
