3ple Decker Raspberry Pi Slim Case [TSI-3D-Pi-SlimCase]
Price: US$9.95(tax excluded)
【Product overview】
It is a case for Raspberry Pi 2 Model B / Raspberry Pi 3 Model B of the Mobile Circuit Block 3ple Decker (3ple Decker) series that is best suited for prototyping IoT (Internet of Things) products and for PBL education (Project Based Learning education).
For color variations, you can choose the color of your choice of two colors, clear and blue.
It comes with pins for stacking as well as other 3ple Decker series cases and pins for fastening to Tamiya 's universal plate.
It is easy to access GPIO pins, DSI, CSI connectors, and SD cards.
■ Color Variations
3ple Decker series case module can be selected from two colors, clear and blue.
□ Clear Series Color

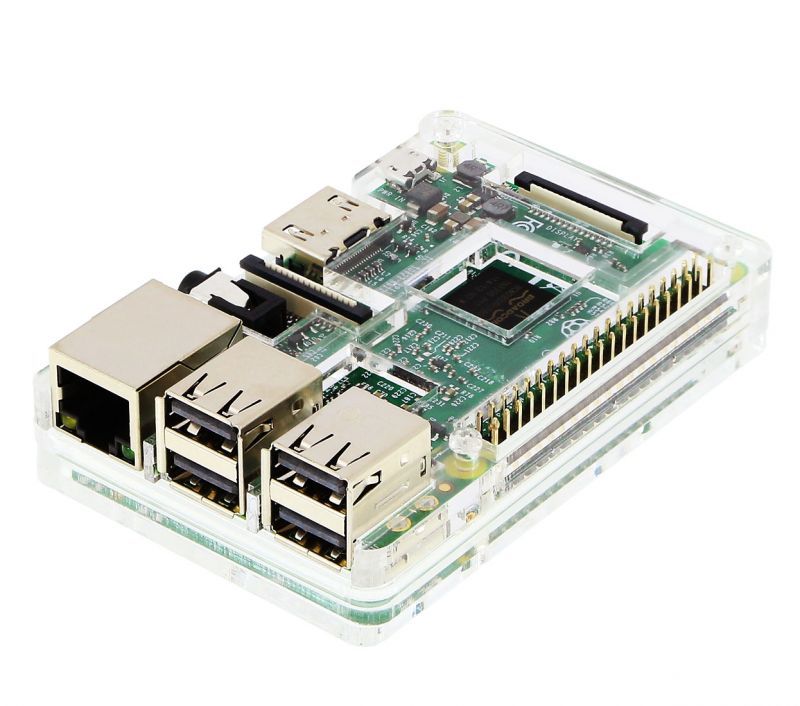

－Clear

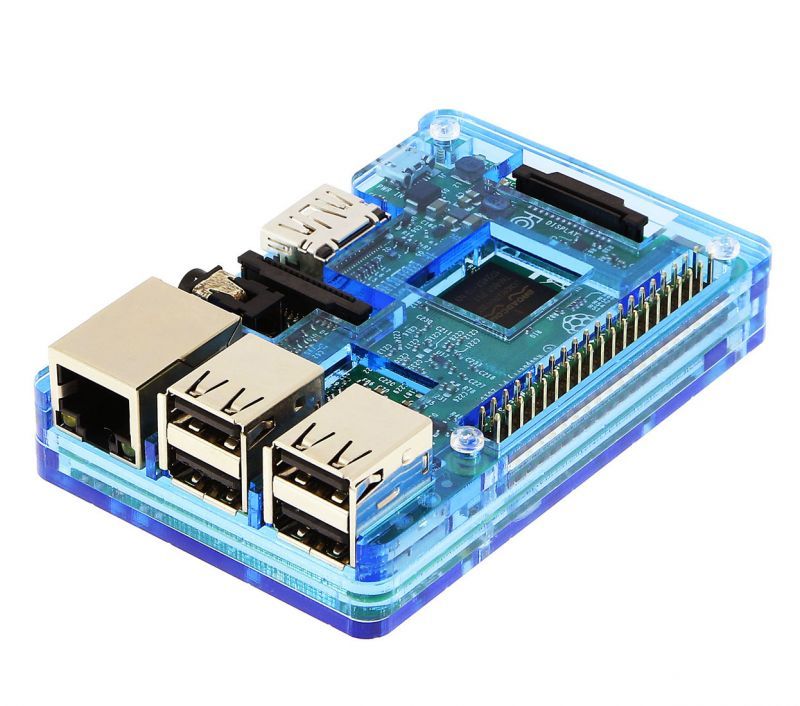

－Blue
【Contents】
－ Acrylic plates for Raspberry Pi2/Pi3 5types
－ Screw Set (long/short/spacer) 4 each
－ Rubber feet set ｘ１
－ Heat sink x 2 （largex1、smallx1）
※1 In the above picture, Raspberry Pi board, power supply, smart and phone etc. are reflected for product explanation, but please prepare separately because it is not included in actual product.
※2 This is a TechShare's original brand Physical Computing Lab Product.
【3ple Decker series】
The 3ple Decker series is based on the design of the Raspberry Pi case products, TechShare has sells traditionally.
- Module for Raspberry Pi, BeagleBone, Arduino microcomputer board
- A universal circuit module containing breadboards and prototype boards
- Mobile battery module (Soon to be released)
It is a series product consisting of three components,the features are as follows.
- Excellent detachability between modules that can stack in multiple stages.
- Mobility that does not depend on power supply by mobile battery module.
- As a System functionality of modularized recombination is easy.

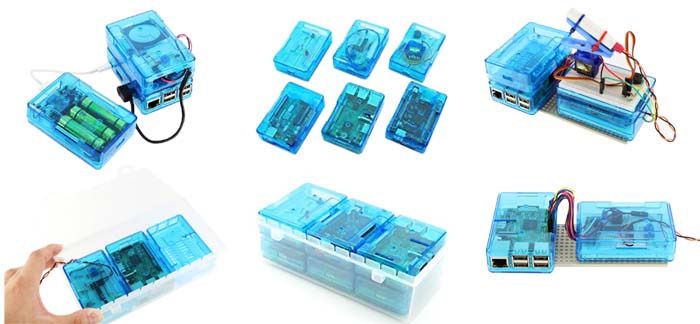

【Things can do it with the 3ple Decker series】
Using 3ple Decker series、By stacking the microcomputer board module and various modules, a device can be created by simple wiring and programming.
For example, by combining a mobile battery and a microcomputer board module with wireless function, it is possible to construct a cableless computing environment.
Furthermore, by adding a universal circuit module containing sensors, IoT's end device that acquires environmental information can be prototyped.
Also, since each module is not in a state where parts and board are exposed, You can experience Physical Computing with the sense of assembling blocks and can use teaching material of PBL education.
Other Images
-

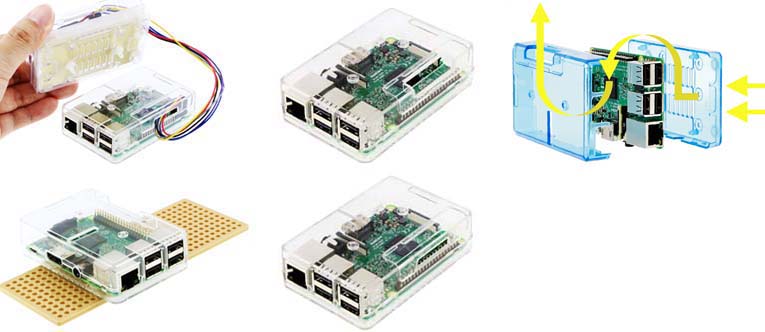

Product Features
■ Two kinds of pins are attached
There are pins avaiable in 3ple Decker Series case for stack , fix into the Tamiya universal plate.
■ Two kinds of GPIO covers are attached
There is an opening in the upper part of the case, making it easy to access GPIO pins.
Two types of detachable lids are fitted to the opening so as to suppress the entry of dust into the case from the opening.
1. The cover which considered good of the air permeability
2. A cover considering connecting a pin socket to the GPIO pin
It is possible to distinguish between two types, making it excellent in practicality and design.
■ Other Accessories
・ It is designed to be fixed also to Tamiya 's Universal Plate. You can also fix the case with the included screw set or the push pin attached to Tamiya 's Universal Plate.
※ Regarding the Pictures, product explanation is given for Universal Plate of Raspberry Pi board and Tamiya. but for actual product please prepare separately. -
Concept of 3ple Decker series
On the 3ple Decker series, based on the design of the Raspberry Pi case, a board case for BeagleBone, Arduino, a universal circuit module containing a breadboard and a prototype board, and a series product consisting of three kinds of components of a mobile battery module We are planning.
■Configuration of 3ple Decker Series
□ Microcomputer module
－ For Raspberry Pi
－ BeagleBone for -Black, Green
－ Arudino (Low type): Uno for Leonardo
－ Arduino (High type): Uno or Leonardo + shield
□ Universal Circuit Module
－ Low type: for half size breadboard
－ High type: same as above
□ Battery Module
The characteristics are as follows.
□ Detachability can be easily stacked in many steps
□ Module Recombination is easy
□ Module unit arrangement and while using use with minimum wiring
□ Mobile power not caught by power supply
In the case of 3ple Decker series, Raspberry Pi, Arduino, BeagleBone can all be of the same size case. Also, since there is a universal circuit case of the same size, if you use it to put it in the case for each circuit module, you can take out as much as you need when using it and connect it to the board and use it,reusability will be much better.
Every module arrangement and storing is simple. If you put it in a case on a module basis, storage and extraction is easy. -

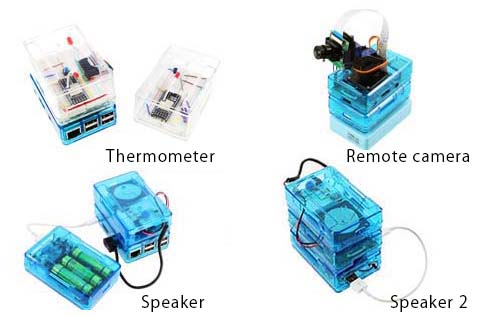

3ple Decker series Application example
Using the 3ple Decker Series,By stacking the microcomputer board module and various modules, simple wiring and programming can be performed, so that one device can be created.
For example, by combining a mobile battery module and a microcomputer board module with wireless function, it is possible to construct a cableless computing environment.
Furthermore, by adding a universal circuit module containing sensors, IoT's end device that acquires environmental information can be prototyped.
Also, since each module is not in a state where parts and board are exposed,
You can experience Physical Computing with the sense of assembling blocks and can use teaching material of PBL education.
Price: US$9.95(tax excluded)
-
