Case for 3ple Decker BeagleBone [TSI-3D-BB-Case]

Case for 3ple Decker BeagleBone [TSI-3D-BB-Case]

Price: US$9.95(tax excluded)

Colors Stock
Clear Available
Smoke Available
Blue Available
Pink Available
Green Available
White Available
Black Sold out
Colors:

Price: US$9.95(tax excluded)

Quantity:



【Product Overview】

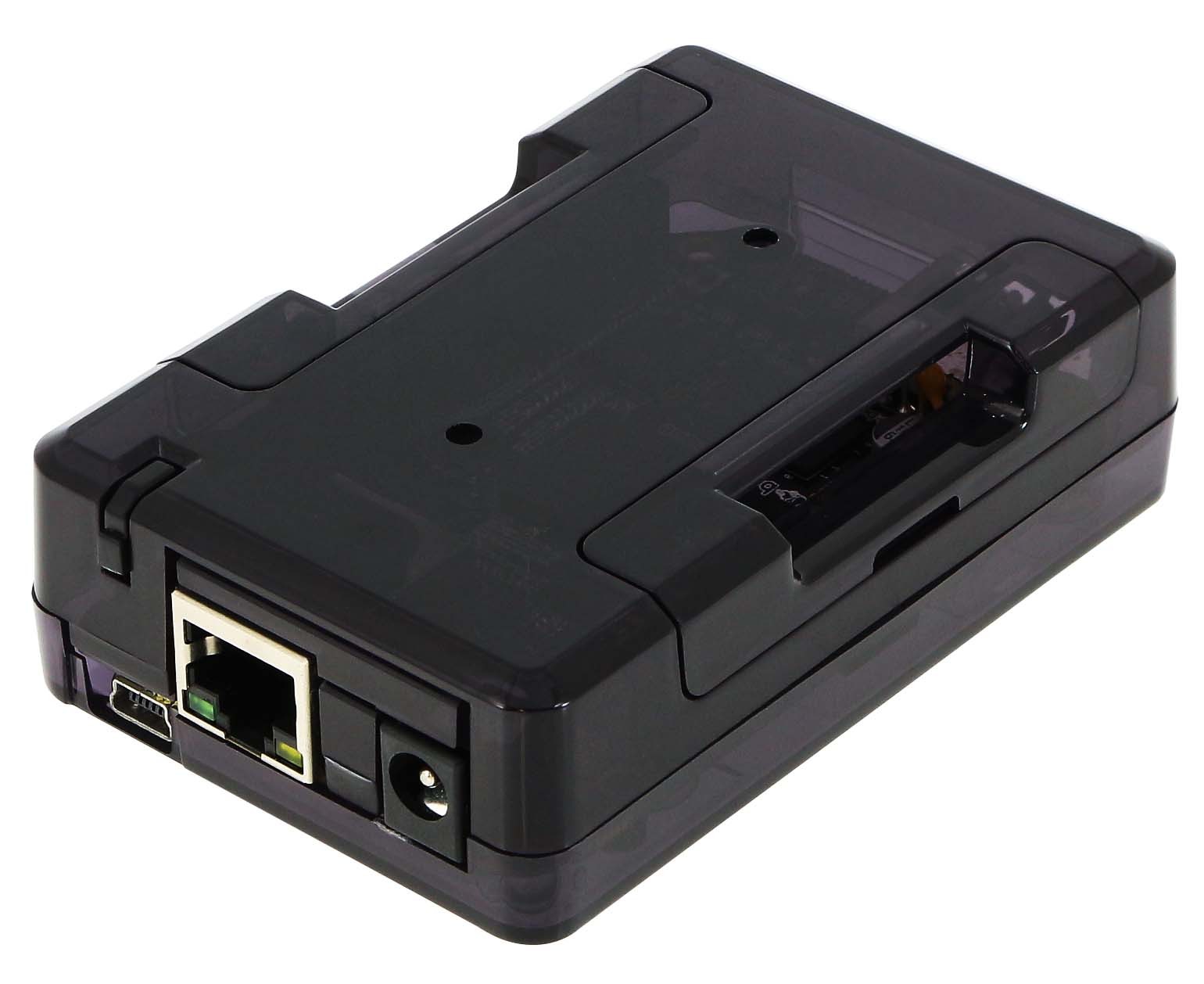

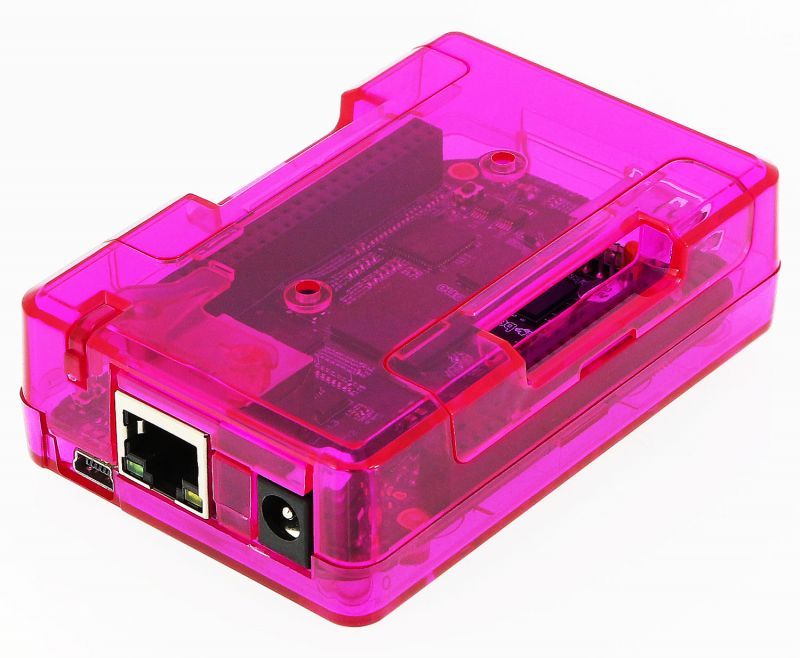

It is a case for Mobile Circuit Block 3ple Decker (Triple / Decker) series BeagleBone Black / BeagleBone Green / BeagleBone Green Wirelessthat is best suited for prototyping IoT (Internet of Things) products and for PBL education (Project Based Learning education).

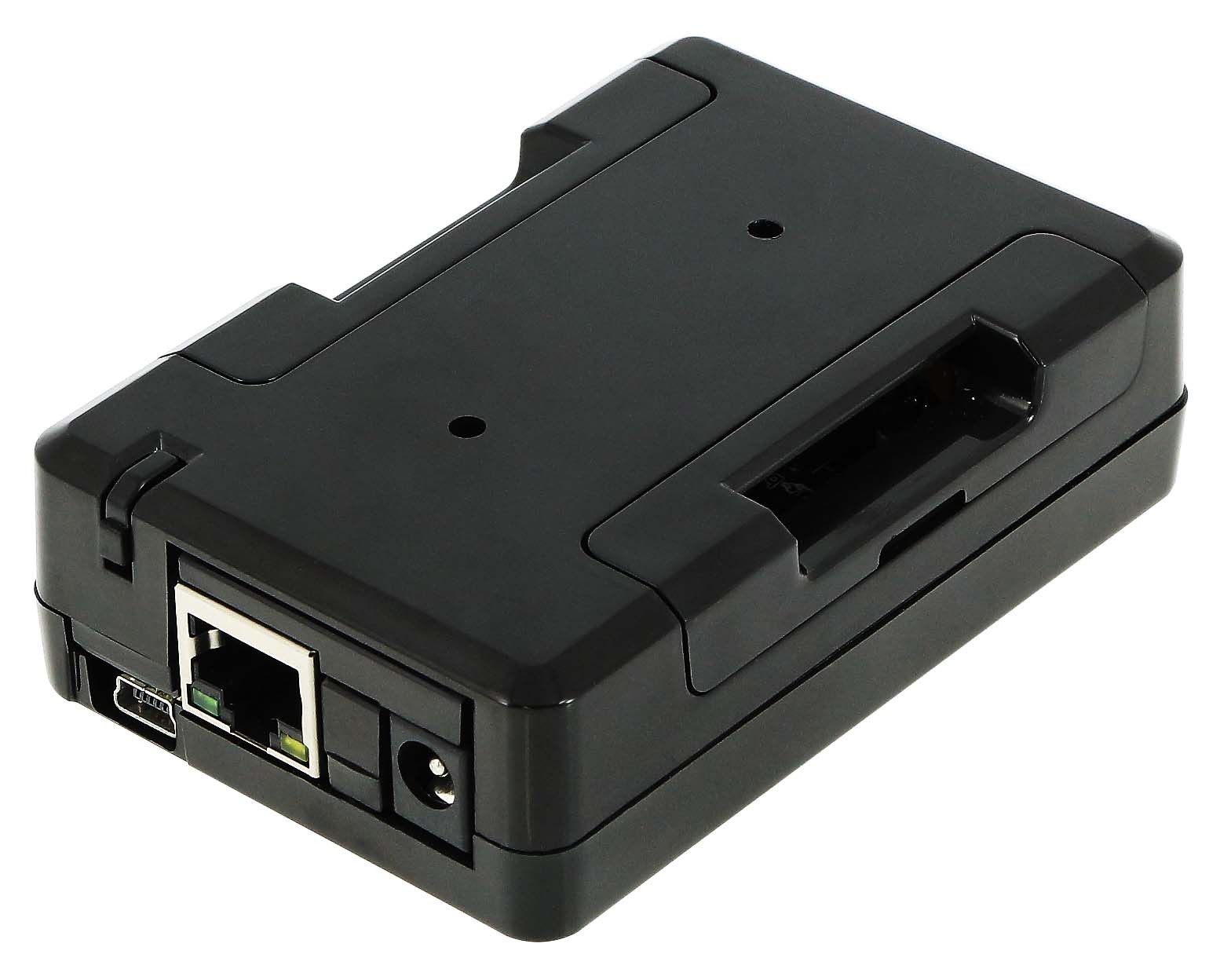

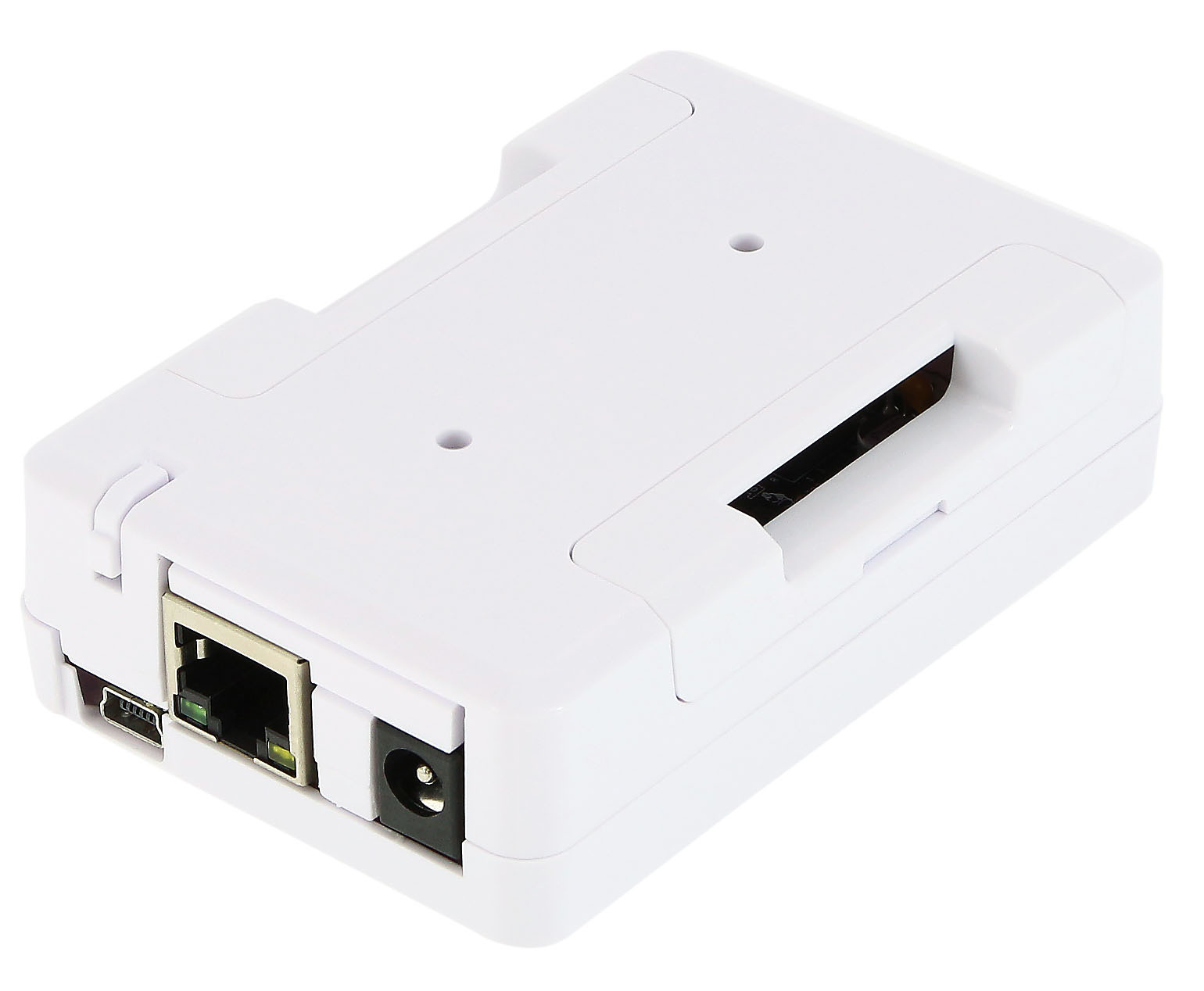

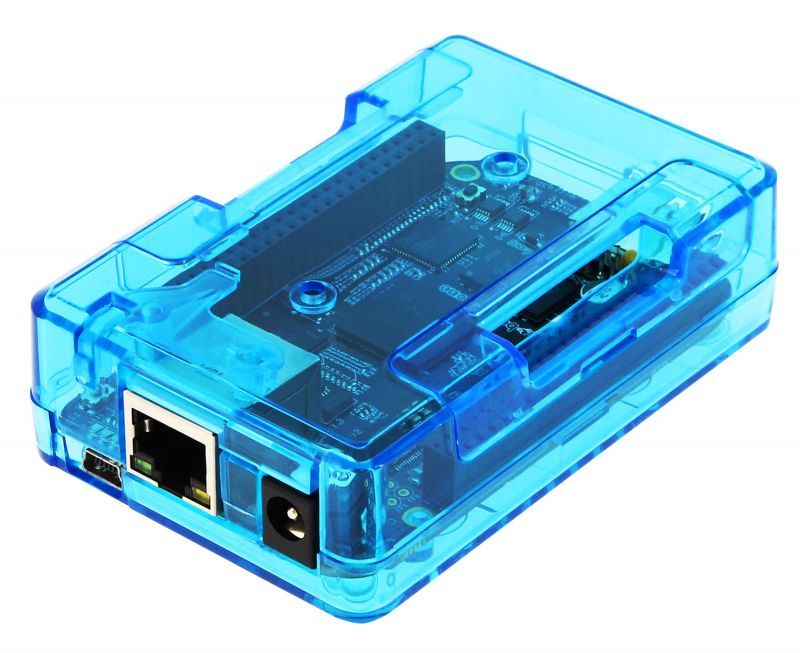

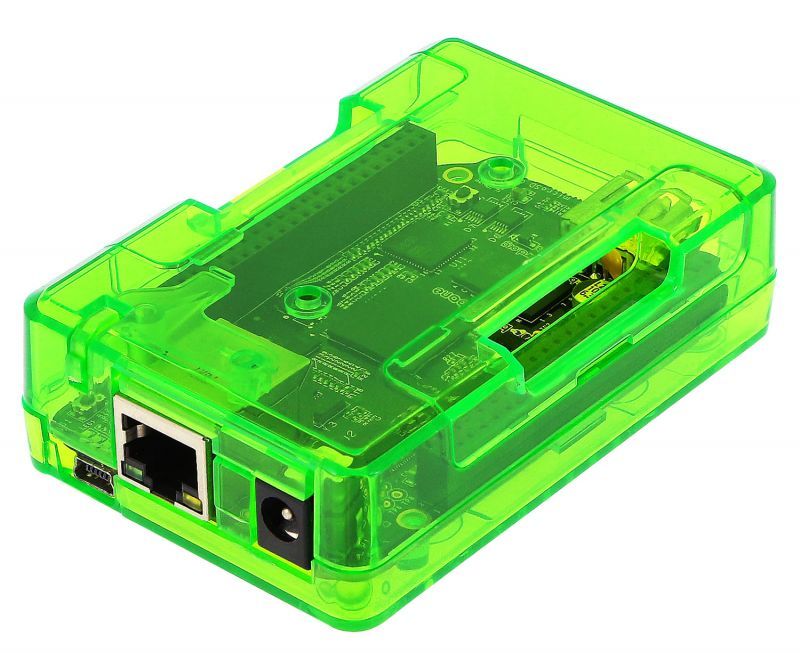

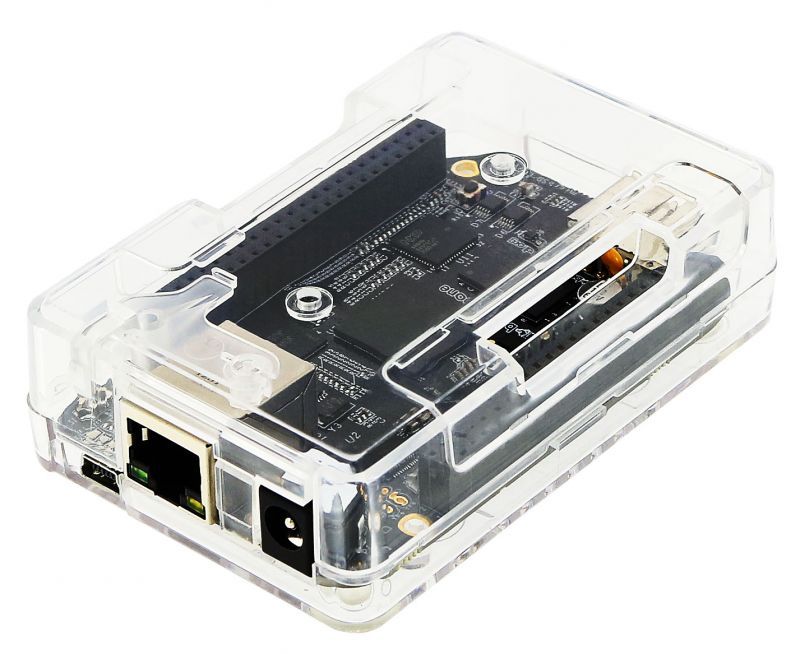

Regarding the color variations, 5 colors of clear systems and 2 colors of non-transmission system and can choose a favorite color among an abundant variation.

There are pins available for stacking with the case of 3ple Decker series and also attached with the Tamiya Plate.

There is an opening in the upper part and it easy to access it with GPIO pins。In addition, in order to suppress the entry of dust into the case, two types of detachable lids that match the opening are included. It is possible to distinguish between two types, one designed for improved breathability and the other with consideration for connecting a pin socket to the GPIO pin, making it excellent in practicality and design.

The mechanism that the power switch can access with the BeagleBone series stored in the case is mounted on the case.



【3ple Decker series】

The 3 dec Decker series is based on the design of the Raspberry Pi case products TechShare has traditionally sold,

  1. Module for Raspberry Pi, BeagleBone, Arduino microcomputer board
  2. A universal circuit module containing breadboards and prototype boards
  3. Mobile battery module (Soon to be release)

It is a series product consisting of three components & mdash; nantes, the features are as follows.

  • Excellent detachability between modules that can stack in multiple stages
  • Mobility that does not depend on power supply by mobile battery module
  • As a System,functionality of modularized recombination is easy.



【Things can do it with the 3ple Decker series】

Using 3ple Decker series、By stacking the microcomputer board module and various modules, a device can be crated by simple wiring and programming.

For example, by combining a mobile battery module and a microcomputer board module with wireless function, it is possible to construct a cableless computing environment.

Furthermore, by adding a universal circuit module containing sensors, IoT's end device that acquires environmental information can be prototyped.

Also, since each module is not in a state where parts and board are exposed, You can experience Physical Computing with the sense of assembling blocks and can use teaching material of PBL education.



Other Images

  • Product Features



    ■ Two kinds of pins are attached


    There are pins avaiable in 3ple Decker Series case for stack , fix into the Tamiya universal plate.


    ■ With power switch

    Regarding the BeagleBone Board Main body ,there is a mechanism of pushing the power switch is attached.Even if it is stored in a case also,power on/off of BeagleBone is possible .

    ■ BeagleBone series Correponding to all
    In the BeagleBone series, the arrangement of connectors such as USB and LAN is different. The opening of the case is based on the BeagleBone Black connector arrange ment and BeagleBone Green and BeagleBone Green Wireless are able to access the added connector by breaking a part of the case.
    ・Next to the LAN connector ,there is a part please break it and use it to USB.
    ・In UART side there is part please break it and use it for GROOVE Connector.

    ■ Two kinds of GPIO covers are attached

    There is an opening in the upper part of the case, making it easy to access GPIO pins.
    Two types of detachable lids are fitted to the opening so as to suppress the entry of dust into the case from the opening.
     1. The cover which considered good of the air permeability
    2. A cover considering connecting a pin socket to the GPIO pin
    It is possible to distinguish between two types, making it excellent in practicality and design.


    ■ Other Accessories
    It is designed to be able to fix to Tamiya 's Universal Plate using the screw set.



    ※1 The photo on the left is an example of installing a case for Raspberry Pi.
    Similarly for the case for BeagleBone you can attach it to the stack or Universal Plate.

    ※2 Regarding the Pictures, product explanation is given for BeagleBone board, but for actual product please prepare separately.

    ※3 In the picture explanation , we include a light blue switch with a case of Clear color so that the switch part becomes easy to understand. The actual product, the case and the switch part will be the same color.

  • Concept of 3ple Decker series

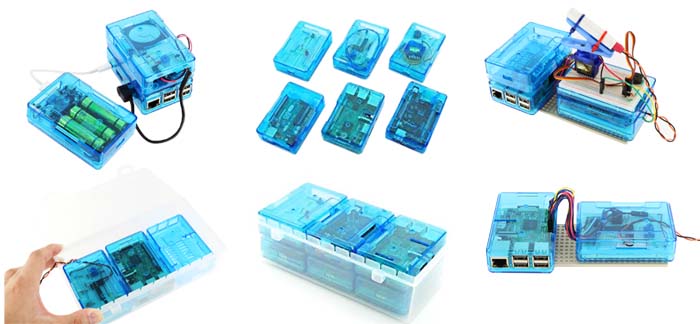

    On the 3ple Decker series, based on the design of the Raspberry Pi case, a board case for BeagleBone, Arduino, a universal circuit module containing a breadboard and a prototype board, and a series product consisting of three kinds of components of a mobile battery module We are planning.


    ■Configuration of 3ple Decker Series
     □ Microcomputer module
      - For Raspberry Pi
      - BeagleBone for -Black, Green
      - Arudino (Low type): Uno for Leonardo
      - Arduino (High type): Uno or Leonardo + shield
     □ Universal Circuit Module
      - Low type: for half size breadboard
      - High type: same as above
     □ Battery Module

    The characteristics are as follows.

     □ Detachability can be easily stacked in many steps
     □ Module Recombination is easy
     □ Module unit arrangement and while using use with minimum wiring
     □ Mobile power not caught by power supply

    In the case of 3ple Decker series, Raspberry Pi, Arduino, BeagleBone can all be of the same size case. Also, since there is a universal circuit case of the same size, if you use it to put it in the case for each circuit module, you can take out as much as you need when using it and connect it to the board and use it,reusability will be much better.

    Every module arrangement and storing is simple. If you put it in a case on a module basis, storage and extraction is easy.

    ※The picture is an example focusing on cases for Raspberry Pi.

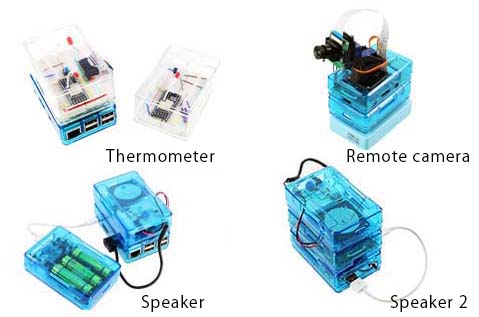

  • 3ple Decker series Application example

    Using the 3ple Decker Series,By stacking the microcomputer board module and various modules, simple wiring and programming can be performed, so that one device can be created.

    For example, by combining a mobile battery module and a microcomputer board module with wireless function, it is possible to construct a cableless computing environment.
    Furthermore, by adding a universal circuit module containing sensors, IoT's end device that acquires environmental information can be prototyped.
    Also, since each module is not in a state where parts and board are exposed,
    You can experience Physical Computing with the sense of assembling blocks and can use teaching material of PBL education.

    ※The picture is an example focusing on cases for Raspberry Pi.
